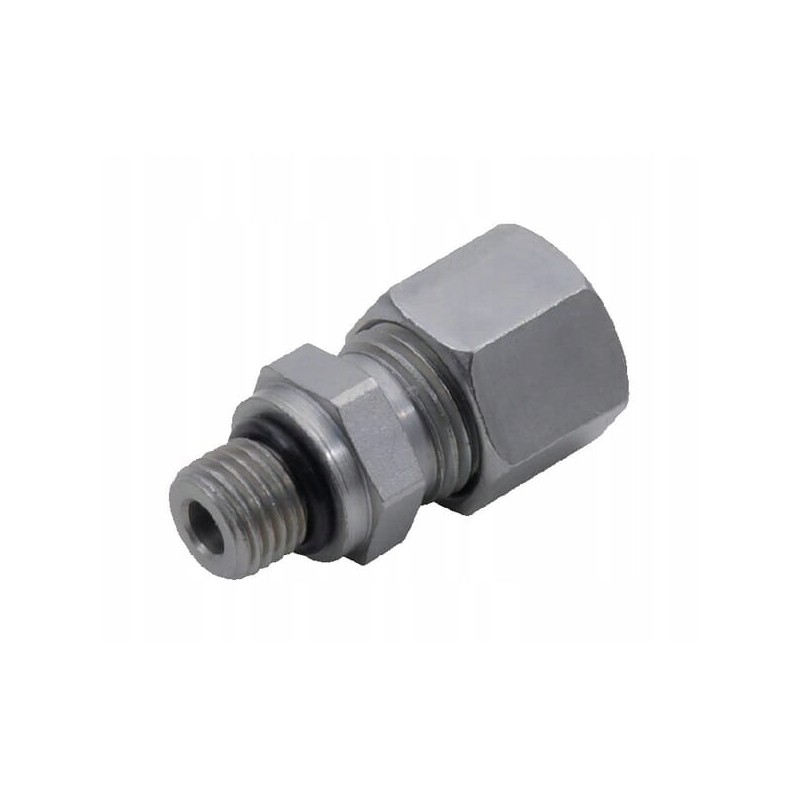

Straight screw-in connector 10l 7 16 unf gev10

Straight screw-in connector 10L 7/16 UNF Parameters

Part number: GEV10L716UNF

Unit: piece

Manufacturer: Voss

Shape: Straight - 2 sides connector

Connector type: Cutting ring

Connector type - male/female: Male

Connection diameter: 10 mm

Connector thread diameter: M16

Thread length Connector [K]: 9.2 mm

Connector No. 1 Thread Pitch: 1.5 mm

Wrench Size for Connector [S1]: 17 mm

Connector No. 2 Type: Sealing Ring

Connector No. 2 Type - Male/Female: Male

Thread diameter of connector No. 2: 7/16 inch

Turns per inch of thread for connector No. 2: 20

Thread type of connector No. 2: UNF

Wrench size for connector No. 2 [S2]: 19 mm

Pipe diameter: 10 mm

SAE standard: 514

Max. working pressure: 500 BAR

Seal material: Nitrile rubber [NBR]

Series: L

Specifications

- Cutting ring 2S

Application

- Hydraulic hose

- Hydraulic lines

Properties

- Optimum connection to the cutting ring and perfect operation - High corrosion resistance Technical information

- Available on request in a stainless steel version - Viton

gasket available on request Dimension from the axis of the joint to the end of the next joint [L2]

27mm

Dimension from the axis of joint no. 2 to the end of the next joint [L1]

12mm

DIN standard

- 2353

- 3852

- 2401

Surface treatment

- Zinc

- Nickel plated
