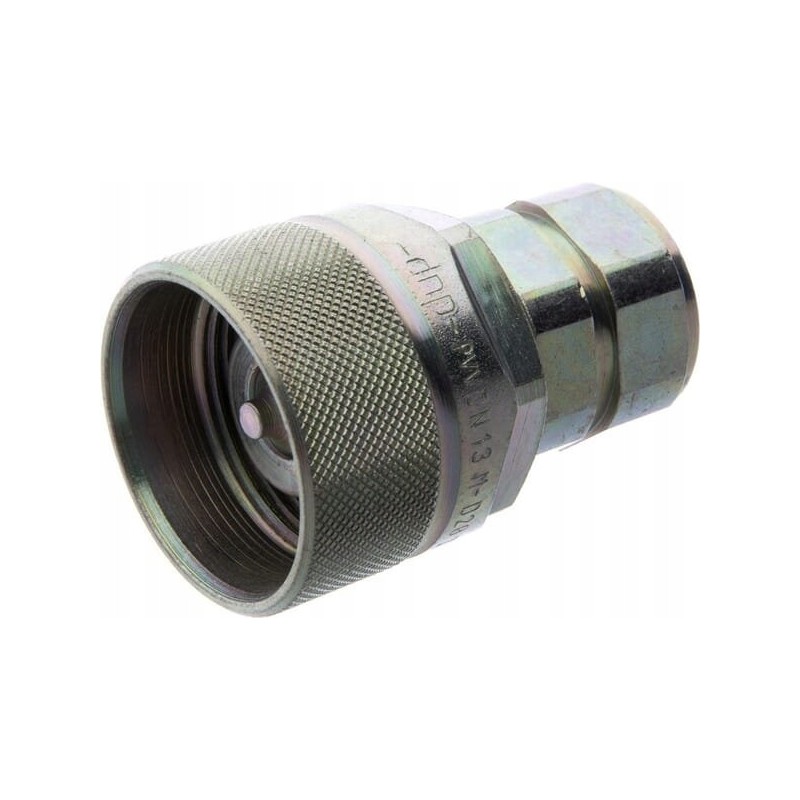

Screwed quick connector 5 8 internal thread 3 8

Screwed quick connector 5/8' internal thread. 3/8' - plug Parameters

Part number: SKSM10C06

Unit: piece

Manufacturer: DNP

Shape: Straight - 2 sides connector

Connector type no. 1: Quick connector

Connector type no. 1 - male/female: Male

Connector no. 1 diameter: 17.5 mm

Diameter thread of connector no. 1: M28

Flow at 2 bar pressure: 45 l/min

Outer diameter: 34 mm

Working pressure: 450 BAR

Max. working temperature: 100 °C

Min. working temperature: -30 °C

Connector No. 1 Thread Pitch: 2 mm

Fits Original Number: HS082IGF06

Wrench Size for Connector No. 1: 30 mm

Connector No. 1 Thread Type: Metric

Connector No. 2 Type: Thread

Connector No. 2 Type - Male/Female: Female

Connector No. 2 thread diameter: 3/8 inch

Number of turns per inch of connector No. 2 thread: 19

Connector No. 2 thread length: 12 mm

Connector No. 2 thread type: BSP

ISO standard: 14541

Nominal diameter: 10 mm

Note: Can be connected at a pressure of max. 50 bar

Specifications

- Self-locking connecting thread

Benefits

- High working pressure

- Protection against unintentional unscrewing due to vibrations Application

- Construction machinery

- Mineral oil based fluids Properties

- Solid workmanship - Low pressure losses - With cut-off on both sides Technical information

- The connector should be screwed in until it stops
