Gear divider AFD20 4 8N blue ascend

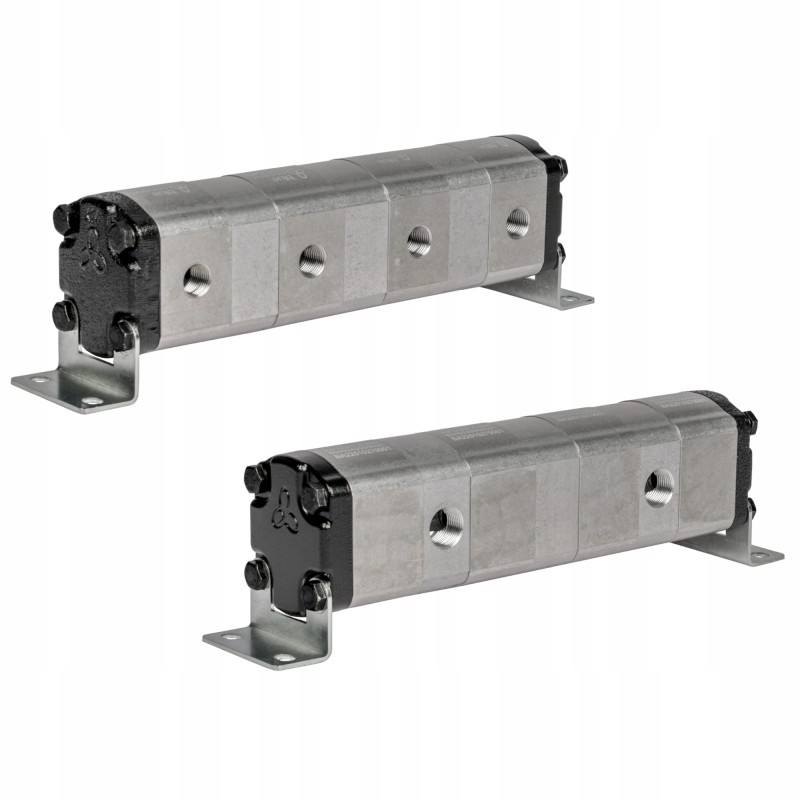

PRECISION GEAR OIL DISTRIBUTOR 2 INPUTS - 4 OUTPUTS Production:

Original product of the Blue Ascend Hydraulics brand, symbol: 1.22.20.4.080.1.1

Application:

Has widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Precise gear divider, designed to equally divide one or two independent oil streams into four equal streams. In the case of one feed stream, it is recommended to divide it into two smaller ones before the divider.

Intended for devices and machines that require a precise division of the oil stream regardless of the inlet pressure and the load of the receivers. operating devices such as engines or actuators.

Principle of operation:

The divider works equally precisely when the oil flows in the opposite direction. The compact design does not require much space and offers a wide range of applications. Mainly used to control differently loaded hydraulic cylinders or hydraulic motors working in parallel, and their smooth operation is a technical priority.

Technical data:

Number of IN inlet channels: 2

Number of OUT outlet channels: 4

Absorption capacity of a single section: 8 cm3/rev

Inlet flow range: from 40 to 80L/min

Efficiency in all outputs in the range: from 10 to 20L/min

Input thread: 3/4'

Output threads: 1/2'

Maximum concurrency: 97% while maintaining the recommended pressure parameters ΔP.

As the pressure difference at the outputs increases, the concurrency decreases by approximately 1% per 10 bar

Error compensation: no compensation valves to clear errors

Maximum pressure in continuous operation: 250 bar

Maximum pressure in temporary operation: 280 bar

Maximum revolutions: 3000 rpm

Minimum revolutions: 1250 rpm

Recommended ΔP (pressure difference on individual sections) >, 50 bar

Below are graphic diagrams of the gear divider:

TABLE WITH PARAMETERS OF THE ENTIRE SERIES OF PRECISION DIVIDER GROUP 20:
