Additional section of the distributor 50l min Warynski

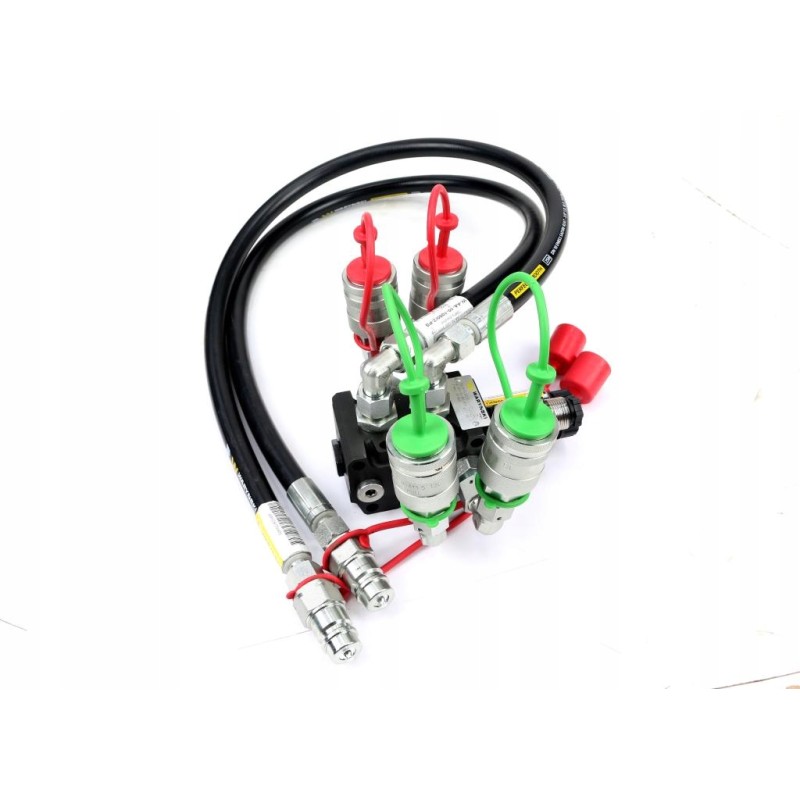

Hydraulic set of additional distributor section with divider. quick connectors and hoses 330bar 50l/min WaryńskiHydraulic set of additional section of the distributor with a divider. quick connectors and hoses 330bar 50l/min Waryński

Technical information:

Type: Set of additional section of hydraulic distributor 50L/min 12V

Flow: 50 l/min< p>

Connections: 1/2' BSP

Max. nominal pressure: 25.0/250 Mpa / bar

Hydraulic set of additional distributor section with 50l/min divider , quick connectors and hoses withstanding a working pressure of 330bar Waryński. A set composed of quality components that can withstand difficult working conditions under heavy loads. The hydraulic set is an ideal solution for expanding the tractor's hydraulic system with additional outputs, without the need to purchase a new hydraulic distributor with a larger number of working sections. A complete additional section with a 6/2 divider can be connected to the hydraulic distributor installed in the tractor (e.g. 2-section). This solution allows you to control another additional receiver in the tractor (e.g. you can control a crocodile or a bale grabber). The valve will seamlessly redirect the oil flow between two pairs of hydraulic quick connectors included in the set. The Waryński set includes 2-braided hydraulic hoses L-1000mm with M18x1.5 nuts with a seal with an internal diameter of 10mm and a working pressure of 330 bar, a 50L 12V divider with tightly twisted adjustable hydraulic elements (including elbows in the valve body), quality quick connectors M18x1.5 ISO-7241-A EURO in the PUSH—PULL version and dust covers protecting the entire hydraulic system against dirt.

Application

The hydraulic set with a 6/2 solenoid valve is used in manifolds and provide an additional hydraulic control function after installation. Agricultural machinery

Construction machinery

Cyclops

Aurochs (crocodile control

bale grabber)

Front loaders

other

Producer: Waryński Original
