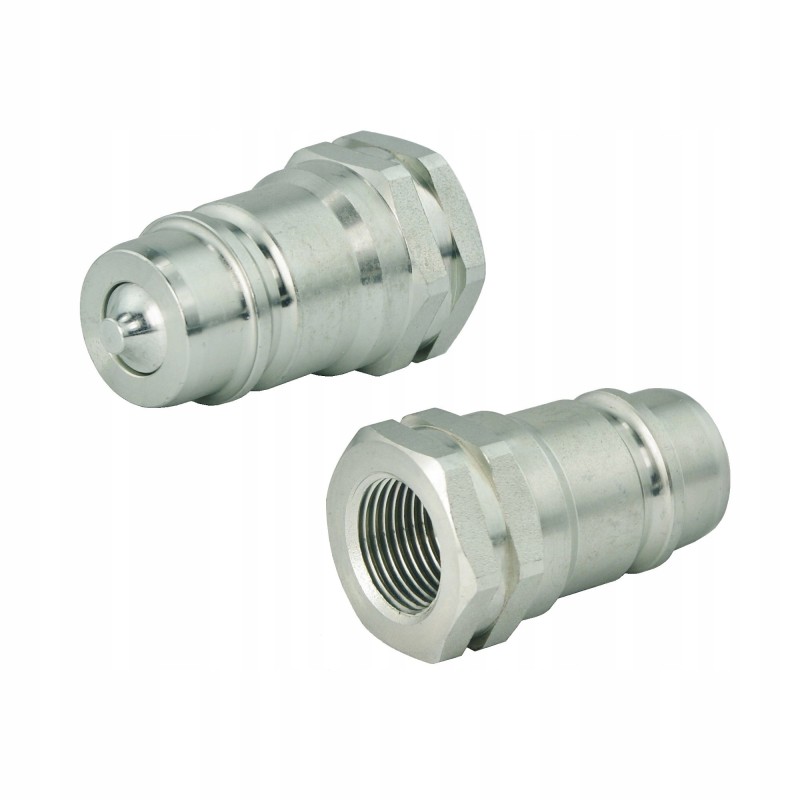

Hydraulic quick connector euro plug, internal mains 1

HYDRAULIC QUICK CONNECTOR PLUG TYPE EURO INTERNAL THREAD 1' Production:

Original product of the Hydrolider brand, symbol: 1.60.55.138.1

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Quick connectors are used for quick connection and disconnection of individual hydraulic lines, without the risk of leaks or dirt getting into the system. Very helpful when repeatedly connecting and disconnecting various machines and devices powered by one hydraulic drive, e.g. a tractor.

Helpful data:

BSP 1' thread diameter measured with a caliper:

Outer diameter [mm]: 33.0 - 33.2

Diameter internal [mm]: 30.3 - 30.8

Technical data:

Thread on the cable side: inch BSP 1'

Thread type: internal

Quick connector type: Euro plug ISO standard

Material: galvanized steel

Weight: 0.742 kg

Liquid type: hydraulic oil

Material:

weldable steel, galvanized, corrosion-resistant
