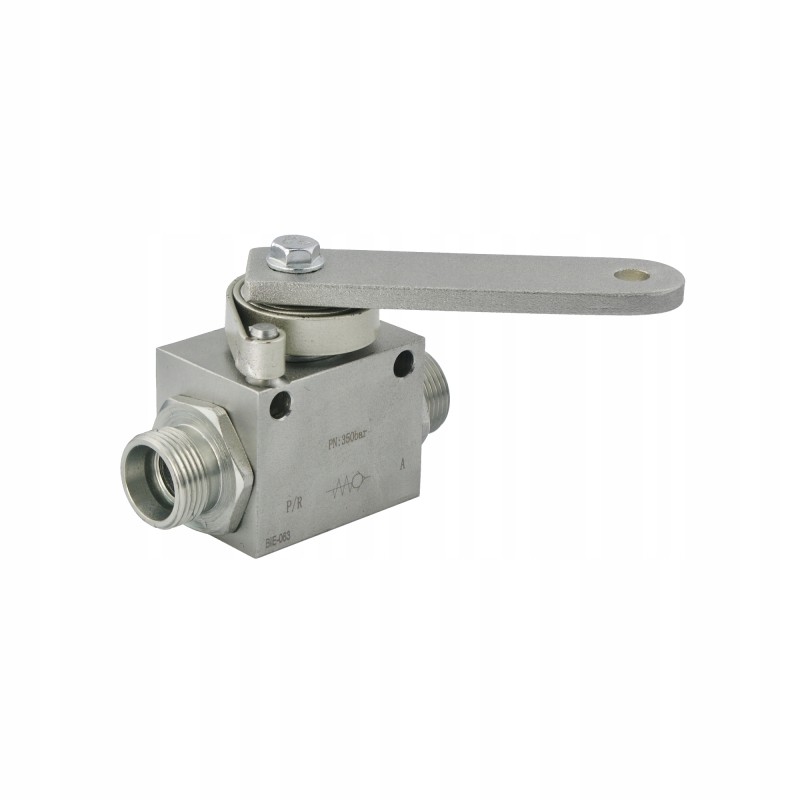

Valve with shut-off spring for trailer m 22x1 5

HYDRAULIC SHUT-OFF BALL VALVE FOR DUMP TRAILER SPRINGS Production:

Original product of the Hydrolider brand, symbol: 1.35.48.022

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Mainly used to limit the stroke of the cylinder telescopic handler in various types of tipping trailers.

Principle of operation:

The hydraulic ball valve cuts off the oil flow from the pump to the tipping cylinder at the appropriate moment. It mechanically limits the extreme position of the load box. In the factory position, the valve is open, moving the lever with a metal cable connected to the load box closes the oil flow. Unlock the valve after the pressure drops in the supply line.

Connection:

Connect P/R to the supply line and A to the tipping cylinder.

Technical data:

Maximum flow: 80 l/min

Number of hydraulic holes: 2

Both sides external thread: M22x1.5

Material: galvanized steel

Maximum pressure: 400 bar

Weight: 0.665 kg

Temperature range and oil type:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C up to +80 C

Oil type: Hydraulic oil based on mineral oil
