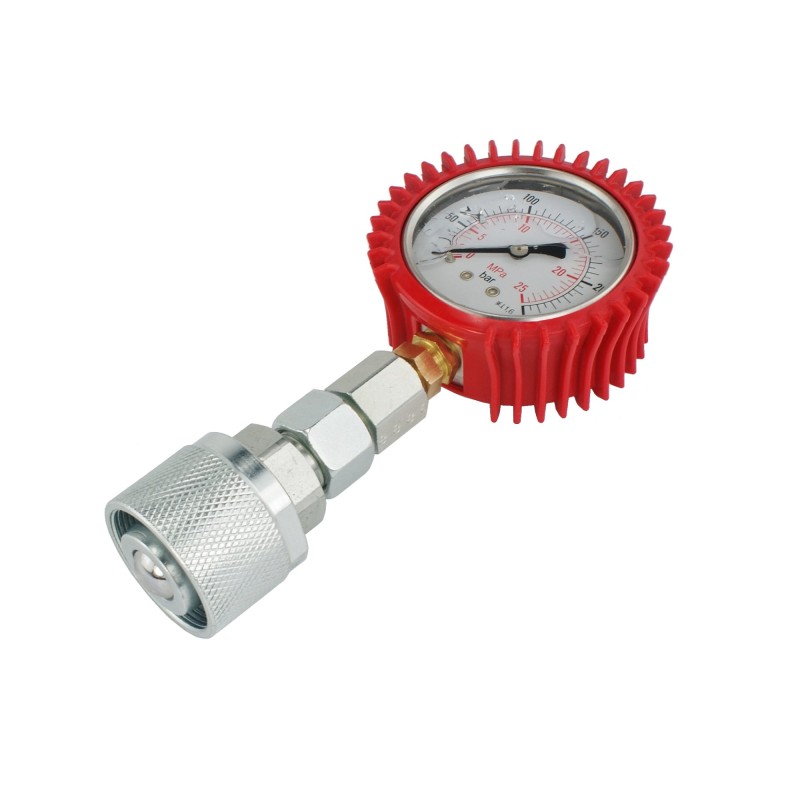

Pressure gauge with plug 36x1 5 63mm 400bar hydrolider

MEASURING KIT FOR CHECKING PRESSURE IN THE HYDRAULIC SYSTEM GLYCERINE MANOMETER WITH QUICK CONNECTOR AND SCREWED PLUG PRESSURE MEASURING RANGE: 0-400 BAR (MANOM PREVIEW PHOTO. SHIPPED WITH SCALE AS IN DESCRIPTION)

Set components:

Manometer

Manometer cover u

Pressure gauge connection

Quick connector, twisted plug

Production:

Original product of the Hydrolider brand, symbol: 1.52.00.216.1

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Set prepared for connection to any hydraulic line capable of producing pressure. Designed to measure oil pressure in closed hydraulic systems. The pressure gauge is filled with glycerine inside, so the measurement is accurate despite shocks and vibrations. It has a plug to equalize the pressure inside the manometer with atmospheric pressure.

Technical data:

Pressure measurement range: 0-400 Bar

Outer diameter of the clock: 63 mm

Clock connection port thread [BSP]: 1/4'

Operating temperature [°C ]: -10 to +50

Accuracy class: 1.6

Quick connector, twisted plug, ISO standard

Quick connector thread: internal M36x1.5

Material:

Housing: steel

Viewfinder: glass

(REVIEW PHOTO MANOM. WE SEND WITH SCALE AS IN DESCRIPTION)
