Dkj cuff dn12 1 2sn unf7 8 14 x10 hydrolider

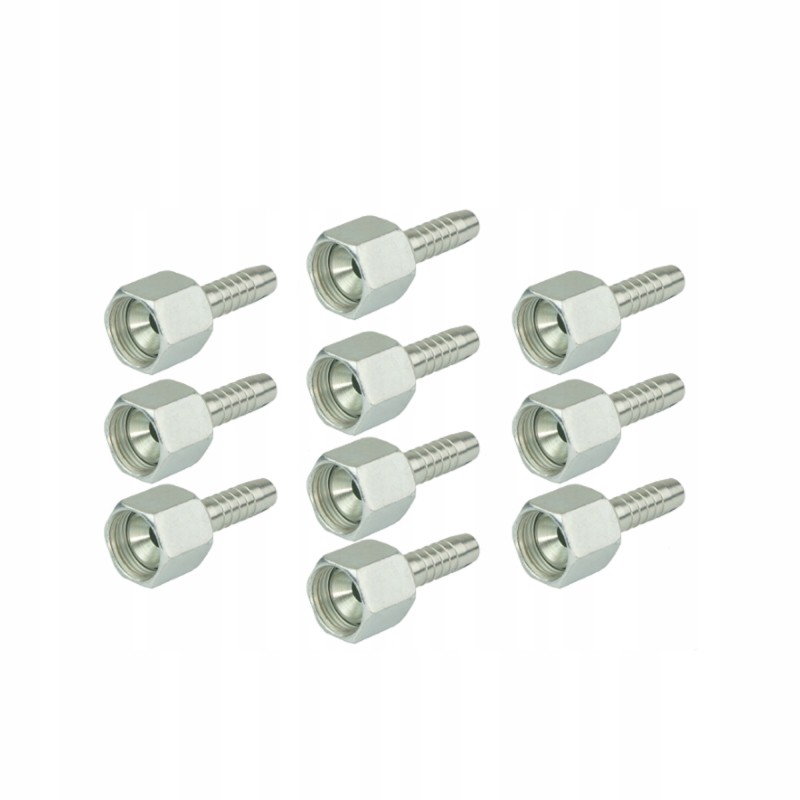

STRAIGHT HYDRAULIC FITTING DKJ 7/8'-14 FOR HYDRAULIC HOSE 1SN / 2SN DN12 (DN13) SET OF 10 PIECES Production:

Hydrolider, symbol: 4.39.12.025.10

Application:

The fitting is used in the production of hydraulic hoses, has a wide range of applications in agriculture, industry and forestry. Designed to be attached to all hoses from our offer: Agriflex, Semperit, Stomil from the DN12 (13) group with single and double braiding. Fits sleeves from the DN12 (13) group with the marking 1SN and 2SN.

Technical data:

Straight fitting, inch [UNF] 7/8'-14 thread tip, light version with a 74° socket and UNF internal thread. Manufactured in accordance with the following standards: PN-65/M 73140, PN-65/M-73141, DIN 3901, DIN 3902. Standard coating of our elements for the production of cables: Electrolytic protective coating ZN alkaline - minimum thickness 8µm Type A chromate passivation, chromium-free ( VI) in accordance with DIN EN 15205.

Thanks to the technology used, all our crimping elements have excellent protection against difficult weather conditions, ensuring durability and long service life.

Operating temperature range: -40°C to 100°C

Recommended hydraulic hose: DN12 (13) 1SN, DN12 (13) 2SN or other with an internal diameter of 12-13mm

Made in Poland for Agricola Hydraulic Component
