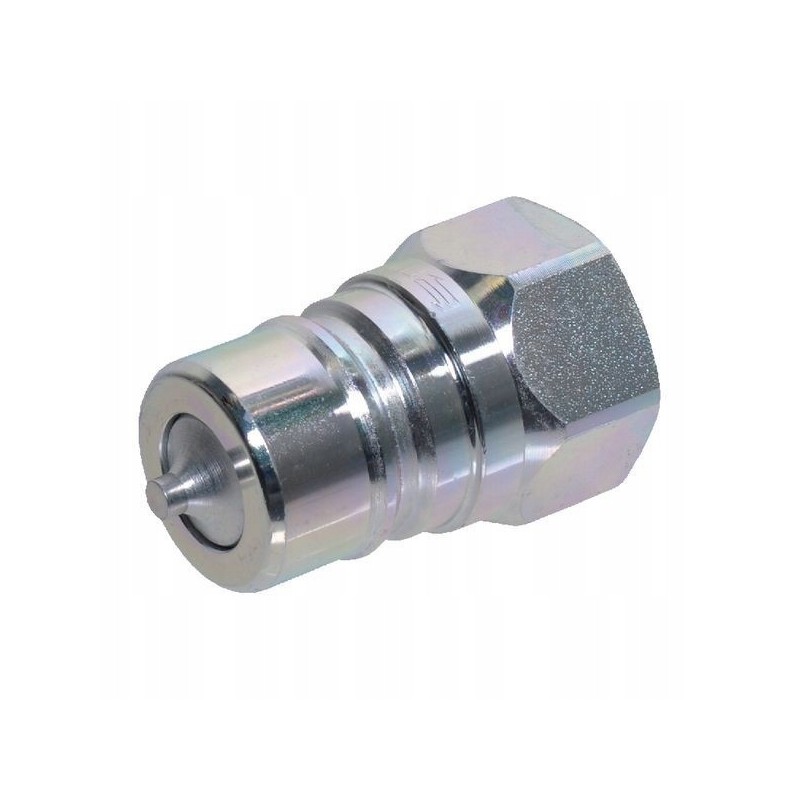

Anv38gasm hydraulic connector 3 8 bsp internal thread

Hydraulic connector 3/8 BSP thread internal INDEX: ANV38GASM

Length: 39mm

Material: Steel

Valve type: Poppet

Shape: Straight - 2 sides of the connection

Size: 10mm

Outside diameter: 24mm

ISO standard: 724-A

1179-1

Series : ANV

Connector Thread Diameter: 3/8inch

Connection Diameter: 17.2mm

Surface Treatment: Chrome Plated

Connector Thread Type : BSP

Total length: 81mm

Seal material: Nitrile rubber [NBR]

Weight: 54.9g

Working pressure: 300BAR

Connector type no. 2 - male/female: Female

Possibility of connecting under pressure: No

Max operating temperature: 125°C

Minimum operating temperature: -25°C

Quick connector lock type: Balls around the circumference

Connection method: Sleeve displacement

Disconnection method: Sleeve displacement

Connection type no. 2: Thread

Connection no. 2 thread diameter: 3/8 inch

Size (code): BG 2

Thread type connections no. 2: BSP

Number of turns per inch of thread of connection no. 2: 19

Flow at 2 bar pressure: 30l/min

Type of connection no. 1: Quick Connect

No.1 Connector Type - Male/Female: Male

No.1 Connector Wrench Size: 22mm

No.1 Connection Diameter: 0.68inch
