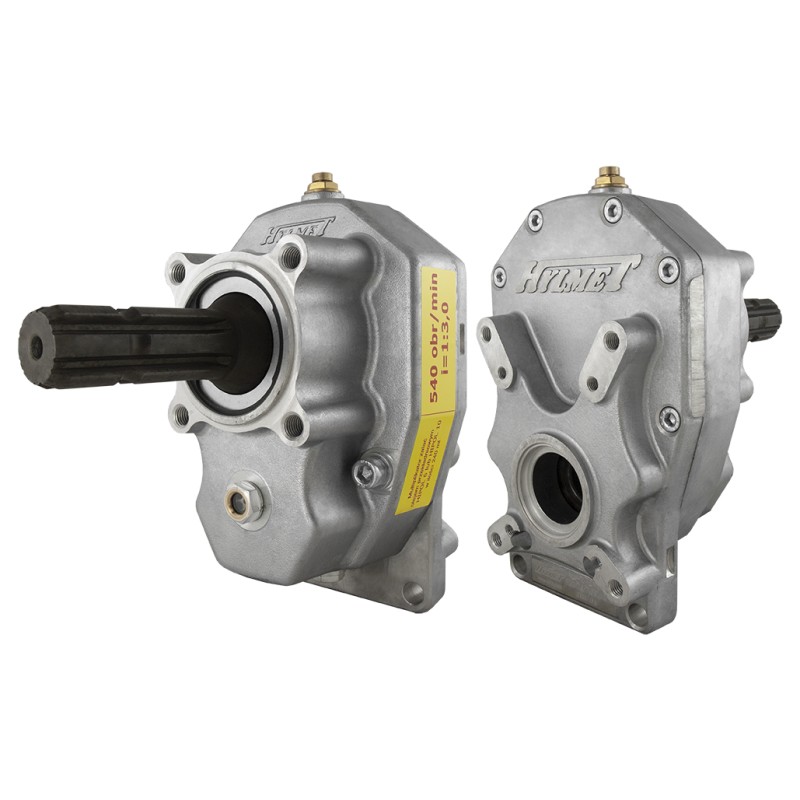

PTO multiplier for gear pump, large, powerful, 30 kW

MULTIPLICATOR (replacement of ML52) with a power of 30kW HYLMET FOR GEAR PUMPS FROM GROUP 2 and 3PZ30-PTO.XCEZ.NE 1:3 Durable, failure-free gear that you can rely on for years. The product is 100% Polish manufactured.

The gear is based on helical teeth, guaranteeing quiet and comfortable operation (-15dB*) and high transmitted power (+50%*).

Multipliers of this type are used in hydraulic systems intended for agriculture and forestry and small orchard tractors (compact dimensions). They are ideal wherever the hydraulic capacity is too low.

HYLMET gears are ideal for heavy-duty applications thanks to their thick, solid housing (minimum thickness 7 mm) and as many as 7 bearings.

The multiplier has standard mounting holes around the shaft and two additional holes thanks to which there is no need to install additional accessories such as a driver.

.

* compared to Chinese gears, ' Italian' with a ratio of 1:3.8 max 20 kW.

FREE!! Clutch (group II / group III) + gear oil FREE!! After purchase, in the message to the seller, please provide the type of pump clutch to be attached to the gear.

Technical data: Multiplier power: 30 kW (guaranteed )

Radio ratio: 1:3.0

input revolutions: 540

output revolutions: 1620

max input torque 530 Nm

max output torque 175 Nm

Possibility of installing pumps:

group II with screw spacing 71.5x96.2 mm

group III with screw spacing 98x128 mm

Pump flange diameter:

group II 36.5 mm

pumps from group III 50.8 mm

PTO shaft: 1' 3/8 DIN9611 - 6 cutters

Compact dimensions (15x25.7 cm) guarantee installation in any type of tractor.

The PZ30-PTO gearbox is equivalent of the ML52 gear.

Comparison of both gears with a 35cm3/rev pump

The HYLMET gear can operate at a pressure of 320 bar

The imported gear can operate at a pressure of 170 bar< p>

Comparing operation at a pressure of 200 bar

the capacity of 90 l/min will be obtained with the HYLMET gear

the capacity of 60 l/min will be obtained with the imported gear
