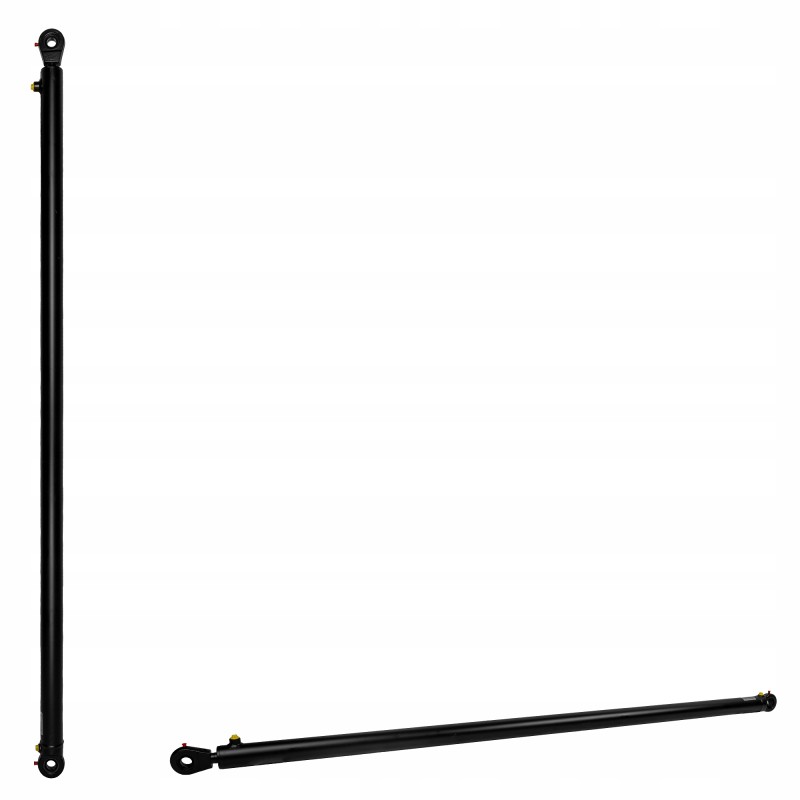

Hydraulic piston cylinder 50 28 s 1700 mm l 1932

DOUBLE-ACTING HYDRAULIC CYLINDER, COMPLETE WITH EARS ON SWINGING BEARINGSProduction:

Original product of the Hydrolider brand, manufacturer's symbol: 7.01.50.28.1700

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The actuator is adapted to various types of agricultural machines such as: bale grabs, crocodiles, aurochs, as well as snow plows, sprayers, cyclops , HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and other hydraulically controlled devices.

DEAR CUSTOMER, READ THIS BEFORE CHOOSE AN ACTUATOR SUPPLIER: What you see in the photo are only metal elements, with which the actuator is built. In fact, the actuator is only worth as much as the internal seals used in its construction. We ensure that all our actuators have reinforced seals that are not manufactured in China or other Far Eastern countries. If you care about quality and durability, choose Hydrolider actuators, which are the only ones that guarantee reliability for years.

General information:

Head mounting on the pipe side: welded

Mounting the head from the rod side: screwed on

Type of stuffing box (closing cover): threaded, screwed into the pipe

Type of rod (piston rod): chrome-plated, weldable

Dimensions:

Piston (pipe) outer diameter: 60mm

Piston (pipe) inner diameter: 50mm

Piston rod (rod) diameter: 28mm

Diameter of holes for pins: 25mm

Stroke (working movement) of the piston rod: 1700mm

Length at rest measured in the axes of holes: 1932mm

Internal threads for connections: M16x1.5

Operating parameters:

Maximum allowable operating pressure: 240 bar

Permissible ambient temperature: -40ºC to +60ºC

Permissible oil temperature: -15ºC to +80ºC

Liquid type: mineral oil-based hydraulic oil

Table showing the change in the pushing force of the offered actuator depending on the change in oil pressure in the hydraulic system (photo):
