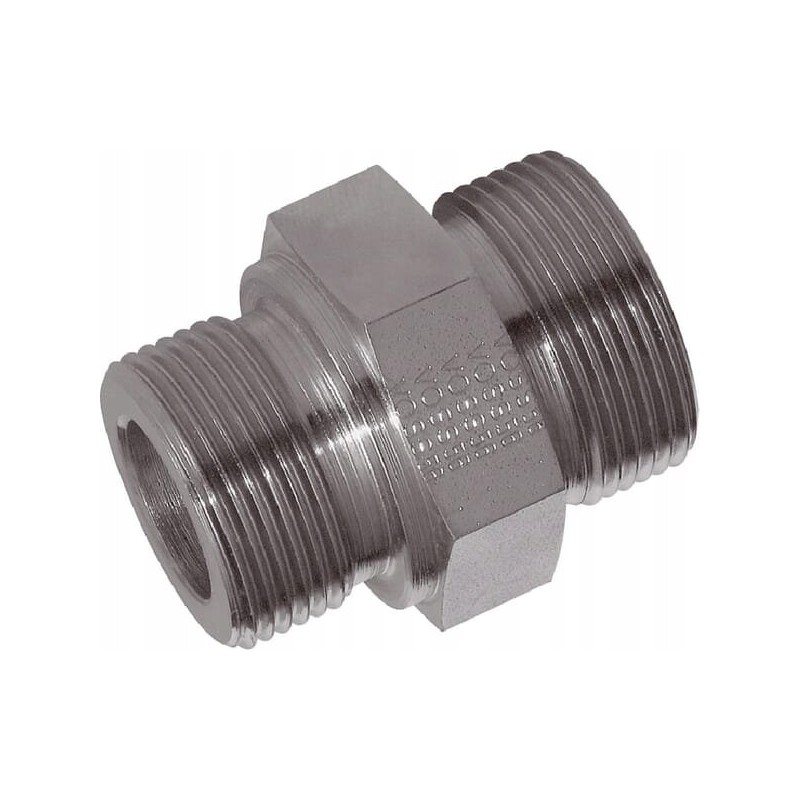

Straight connection m22x1 5 m20x1 5 12s

Straight connection M22X1.5 - M20x1.5 12S Parameters

Part number: GES12SM22

Unit: Piece

Manufacturer: Voss

Shape : Straight - 2 sides of connection

Connector type no. 1: Cutting ring

Connector type no. 1 - male/female: Male

Connection diameter: 12 mm< p>

Connector No. 1 thread diameter: M22

Connector thread length: 14 mm

Connector No. 1 thread pitch: 1.50 mm

Thread type Connectors: Metric

Connector #1 Key Size: 27 mm

Connector #1 Key Size: 27.0 mm

Connector #2 Type: Thread

Connector no. 2 type - male/female: Male

Connection no. 2 thread diameter: M20

Connector no. 2 thread pitch: 1.50 mm

Connection No. 2 Thread Type: Metric

Connection No. 2 Wrench Size: 24.0 mm

Pipe Diameter: 12 mm

ISO Standard: 228

Inner diameter: 8 mm

Length: 39 mm

Max working pressure: 630 BAR

Series: 12S

Tightening torque max.: 300 N m

Dimension from the axis of the connector to the end of the next connector

33.5 mm

Dimension from the axis of connector no. 2 to end of the next connector

17.5 mm

DIN standard

- 2353

- 228

- 3852

- 2401

Surface treatment

- Zinc

- Nickel-plated
