Hydraulic actuator 63 36 200 l 482 power hydrolider

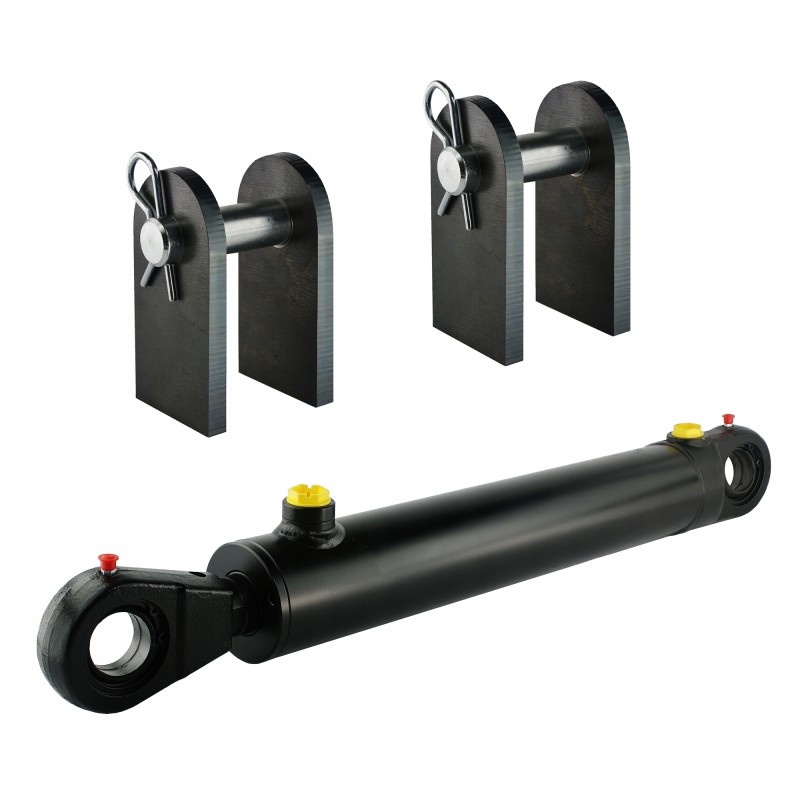

DOUBLE-ACTING HYDRAULIC CYLINDER COMPLETE WITH TWO MOUNTINGSProduction:

Original product of the Hydrolider brand, manufacturer's symbol: 1.32.20.102.1, CJ2F 63/36/200 U35

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and the broadly understood industry.

The actuator is adapted to various types of agricultural machines such as: bale grabs, crocodiles, auroches, and also snow plows, sprayers, Cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and other hydraulically controlled devices.

DEAR CUSTOMER, READ THIS BEFORE YOU CHOOSE AN ACTUATOR SUPPLIER: What you see on The photo shows only the metal elements that make up the actuator. In fact, the actuator is only worth as much as the internal seals used in its construction. We ensure that all our actuators have reinforced seals that are not manufactured in China or other Far Eastern countries. If you care about quality and durability, choose Hydrolider actuators, which are the only ones that guarantee reliability for years.

General information:

Head mounting on the pipe side: welded

Mounting the head from the rod side: screwed on

Type of stuffing box (closing cover): threaded, screwed into the pipe

Type of rod (piston rod): chrome-plated, weldable

Dimensions:

Piston (pipe) outer diameter: 73mm

Piston (pipe) inner diameter: 63mm

Piston rod (rod) diameter: 36mm

Diameter of holes for pins: 35mm

Stroke (working movement) of the piston rod: 200mm

Length in the rest state measured in the axes of holes: 482mm

Internal threads for connections: M22x1.5

Operating parameters:

Maximum allowable operating pressure: 250 bar

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

Liquid type: mineral oil-based hydraulic oil

Table showing the change in the pushing force of the offered actuator depending on from the change in oil pressure in the hydraulic system (photo):
