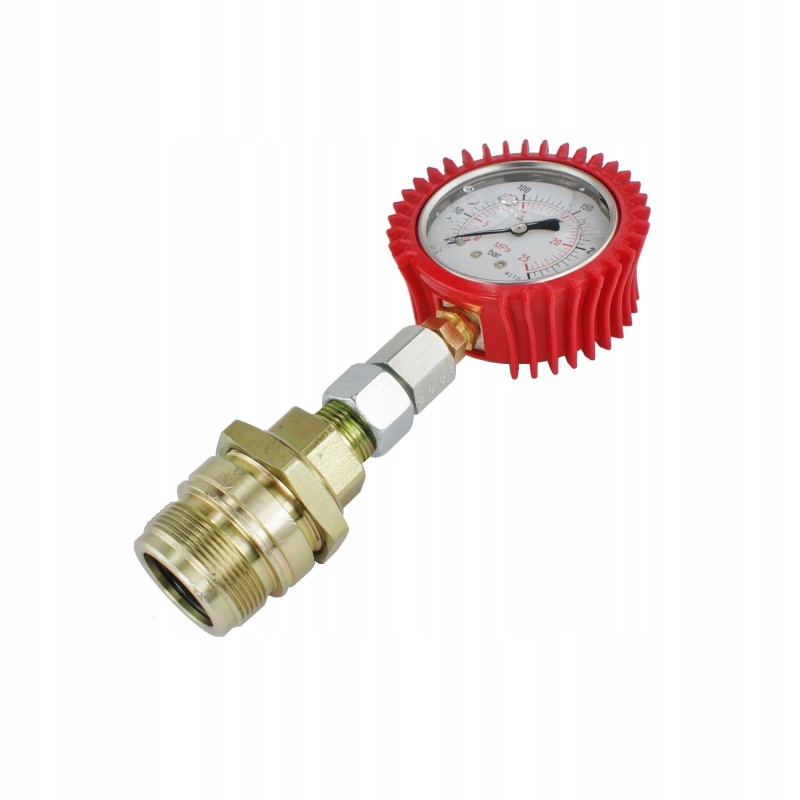

Pressure gauge with socket 36x1 5 63mm 160bar hydrolider

MEASURING SET FOR CHECKING PRESSURE IN THE HYDRAULIC SYSTEM GLYCERINE MANOMETER WITH QUICK CONNECTOR AND SCREWED SOCKET PRESSURE MEASURING RANGE: 0-160 BAR (MANOM PREVIEW PHOTO. SHIPPED WITH SCALE AS IN DESCRIPTION)

Set components:

Manometer

Manometer cover

Pressure gauge connection

Quick connector, screwed socket

Production:

Original product of the Hydrolider brand, symbol: 1.52.00.414.1

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Set prepared for connection to any hydraulic line capable of producing pressure. Designed to measure oil pressure in closed hydraulic systems. The pressure gauge is filled with glycerine inside, so the measurement is accurate despite shocks and vibrations. It has a plug to equalize the pressure inside the manometer with atmospheric pressure.

Technical data:

Pressure measurement range: 0-160 Bar

Outer diameter of the clock: 63 mm

Clock connection port thread [BSP]: 1/4'

Operating temperature [°C ]: -10 to +50

Accuracy class: 1.6

Quick connector, screwed socket, ISO standard

Quick connector thread: external M36x1.5

Material:

Housing: steel

Viewfinder: glass

(REVIEW PHOTO MANOM. WE SEND WITH SCALE AS IN DESCRIPTION)
