Elbow with locknut m14x1 5 m16x1 5 10l
  • Elbow with locknut m14x1 5 m16x1 5 10l
  • Elbow with locknut m14x1 5 m16x1 5 10l

Elbow with locknut m14x1 5 m16x1 5 10l

15010421306415
£18.00
Quantity
5 Items

Description

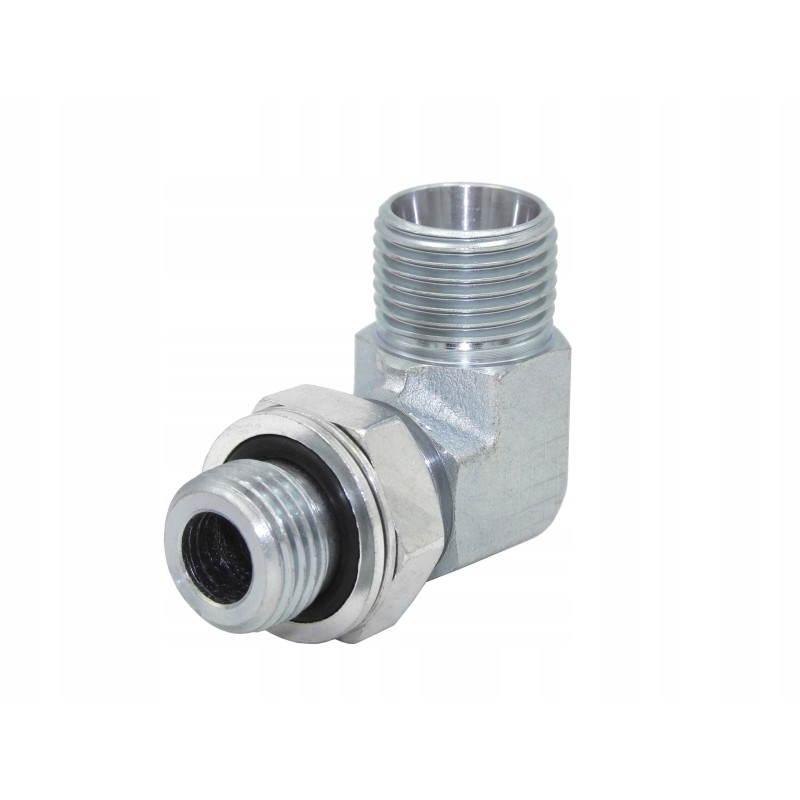

HYDRAULIC ELBOW WITH LOCK NUT M14x1.5 - M16x1.5 10LApplication:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Elbow connection bodies in set with locknut (lock nut), sealing washer and gasket. The connectors are intended for installation in actuators, pumps and hydraulic distributors. One side of the flat connection without a cone is called the connection side (with a seal and locknut), the other side with external thread and cone for connecting to the hydraulic hose.

Technical data:

Thread on the side connection: external metric 14x1.5

Thread on the other side: external metric 16x1.5 10L - light standard

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

weldable, galvanized steel, corrosion-resistant

We offer most types of hydraulic motors as well as the complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.

We issue invoices

We invite you to cooperate

Product Details
15010421306415
KPN M14/16 10L
5 Items
New

Data sheet

Manufacturer
Perfect Hydraulic
Part Number
KPN M14/16 10L
