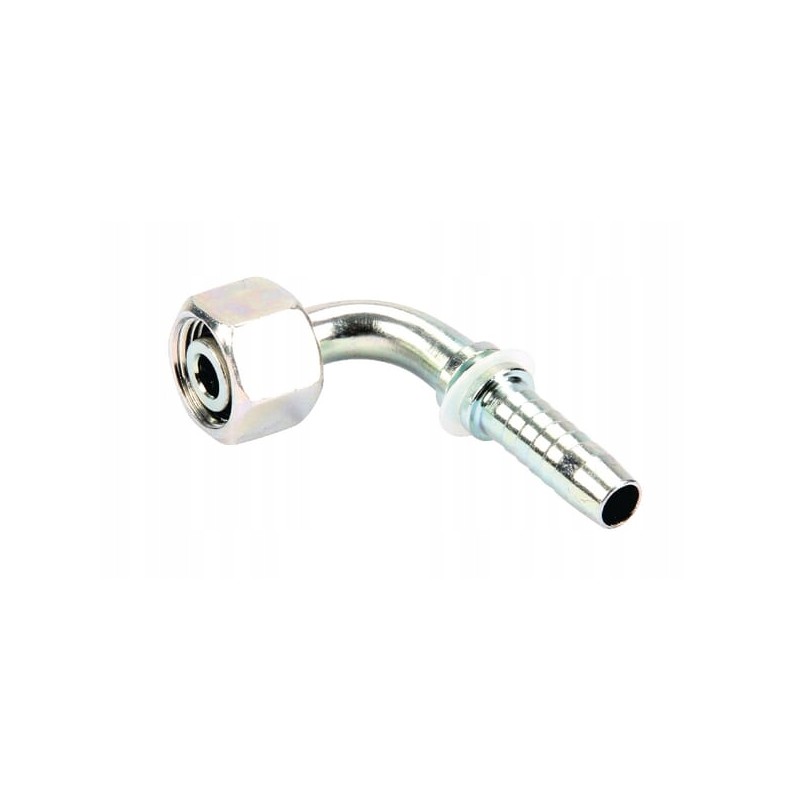

End cap dn20 m30x2 0 22l 90

End DN20-M30x2.0-22L-90°

Part number: PGLO203090

EAN: 8719493100938

Unit: Art

Product details:

Cone, conical seal with O-ring

L series crimping ring connection

Contains:

Ends

O-ring

Cone angle: 24°

Shape: Elbow - 2 sides of the connection Connector type no. 1: Conical

Connector type no. 1 - male/female: Female

Connector type no. 1 - code: DKOL

F1 Connector No. 1 thread diameter: M30

Connector No. 1 thread pitch: 2.00mm

CH1 Wrench size for connector #1: 36.0mm

Connector type no. 2: Hose connector Connector type no. 2 - male/female: Male

Connection Diameter No. 2: 3/4 inch

Connection diameter no. 2: 20mm CDimension from the axis of the connector to the bottom of the next connector: 56mm

DDimension from the axis of joint no. 2 to the end of the next joint: 59mm

Angle: 90°

Material: Steel

Surface treatment:

Galvanized

White passivated

Series: 22L

OE reference number: H1221593-123000

Connection: xx

Material: Steel

Series: 22L

Type: DKOL
