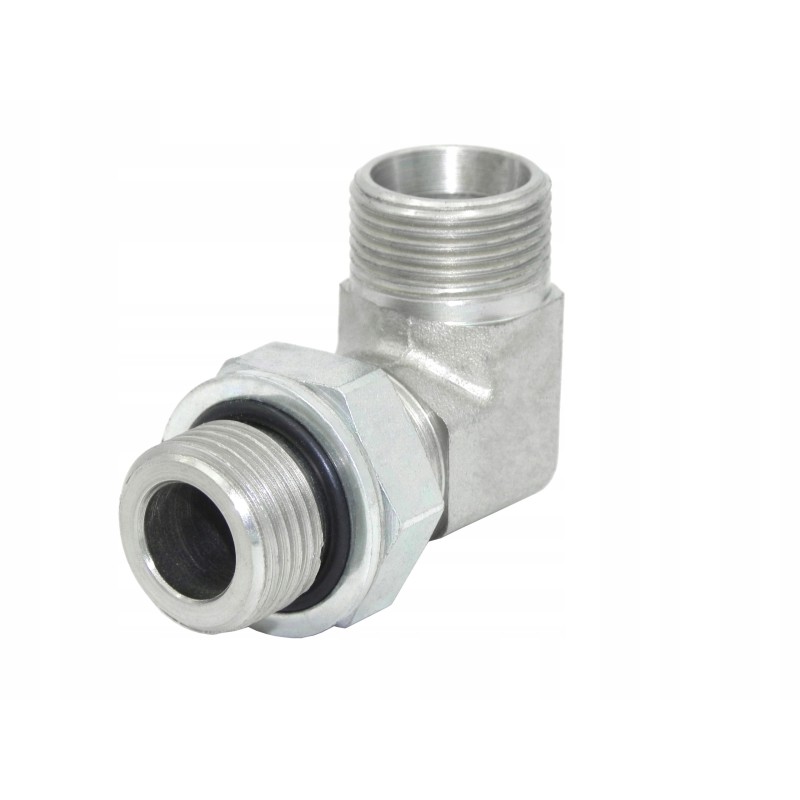

Elbow with locknut BSP 1 2 m22x1 5 15l

HYDRAULIC ELBOW WITH LOCK NUT BSP 1/2'' - M22x1.5 15LApplication:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Houses elbow connections in a set with a locknut (lock nut), a sealing washer and a gasket. The connectors are intended for installation in actuators, pumps and hydraulic distributors. One side of the flat connection without a cone is called the connection side (with a seal and locknut), the other side with external thread and cone for connecting to the hydraulic hose.

Technical data:

Thread on the side connection: external inch BSP 1/2''

Thread on the other side: external metric 22x1.5 15L - light standard

Nominal pressure: 180bar

Pressure maximum: 230bar

Liquid type: hydraulic oil

Material:

welded steel, galvanized, corrosion-resistant

Our offer includes most types of hydraulic motors as well as the entire range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
