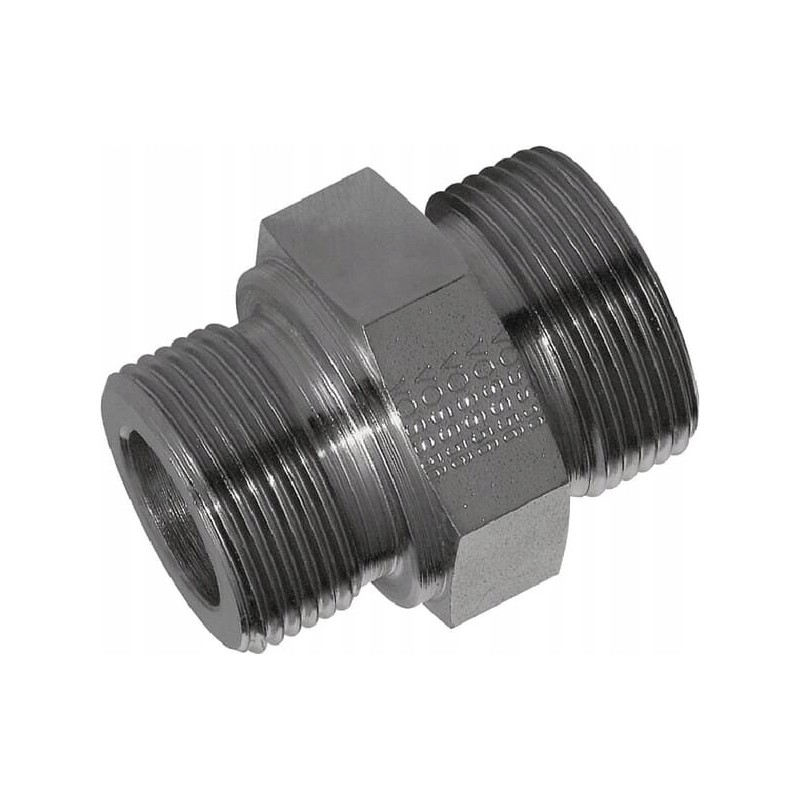

Straight connection 1 8 bsp m16x1 5 10l

Straight connection 1/8' BSP - M16x1.5 10L Parameters

Part number: GES10LR18

Unit: Piece

Manufacturer: Voss

Shape: Straight - 2 sides of connection

Connector type no. 1: Cutting ring

Connector type no. 1 - male/female: Male

Connection diameter: 10 mm

Connector No. 1 thread diameter: M16

Connector thread length: 8 mm

Connector No. 1 thread pitch: 1.50 mm

Connector Thread Type: BSP

Connector #1 Wrench Size: 13.9mm

Connector #1 Wrench Size: 17.0mm

Connector #2 Type: Thread

Type of connector no. 2 - male/female: Male

Thread diameter of connector no. 2: 1/8 inch

Number of threads per inch of thread of connector no. 2 : 28

Connection No. 2 thread type: BSP

Wrench size for connector No. 2: 19.0 mm

Pipe diameter: 10 mm

ISO standard: 228

Inner diameter: 4 mm

Length: 25.5 mm

Max working pressure: 400 BAR

Series: L

Max tightening torque: 20 N m

Dimension from the axis of the connector to the end of the next connector

25.5 mm

Dimension from the axis of connector no. 2 to the end of the next connector

10.5 mm

DIN standard

- 2353

- 228

- 3852

- 2401

Surface treatment

- Zinc

- Nickel-plated
