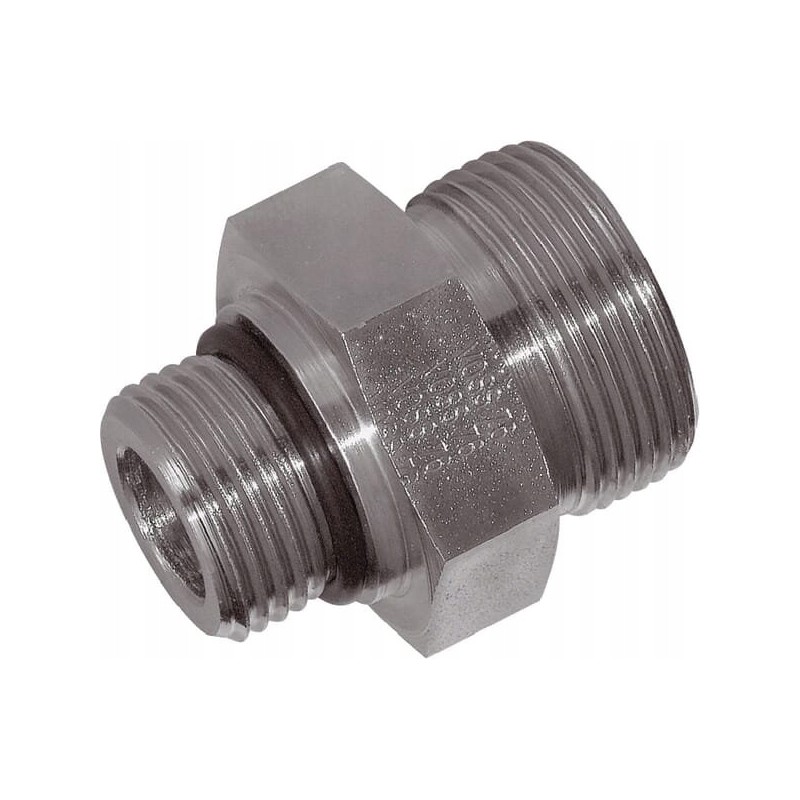

Straight connection m12x1 5 6l 7 16 unf

Straight connection M12x1.5 6L 7/16 UNF Parameters

Part number: GES6L716UNF

Unit: Piece

Manufacturer: Voss

Shape: Straight - 2 sides connector

Connector type no. 1: Cutting ring

Connector type no. 1 - male/female: Male

Connection diameter: 6 mm

Connector thread diameter: 7/16 inch

Connector No. 1 Thread Diameter: M12

Connector No. 1 Thread Length: 9.2 mm

Connector No. 1 Thread Pitch: 1.50 mm

Connector Thread Type: UNF

Connector No. 1 Wrench Size: 15.8 mm

Wrench Size for connector no. 1: 14.0 mm

Type of connector no. 2: Sealing ring

Type of connector no. 2 - male/female: Male

Thread diameter of connector no. 2: 7/16 inch

Number of turns per inch of thread of connector no. 2: 20

Type thread of connection no. 2: UNF

Wrench size for connection no. 2: 17.0 mm

Pipe diameter: 6 mm

SAE standard: 514

Internal diameter: 4 mm

Length: 25 mm

Max. working pressure: 500 BAR

Seal material : Nitrile rubber [NBR]

Series: L

Tightening torque max.: 25 N m

Advantages

- Limited risk of leakage Product details

- For direct connection to a metric hose nut or pre-assembled connector - Highly resistant to corrosion - Hydraulic Hoses

- Hydraulic pipes - Available with Viton seal on request Benefits

- Low risk of leakage DIN standard

- 2353

- 3852

- 2401

Surface treatment

- Zinc

- Nickel plated
