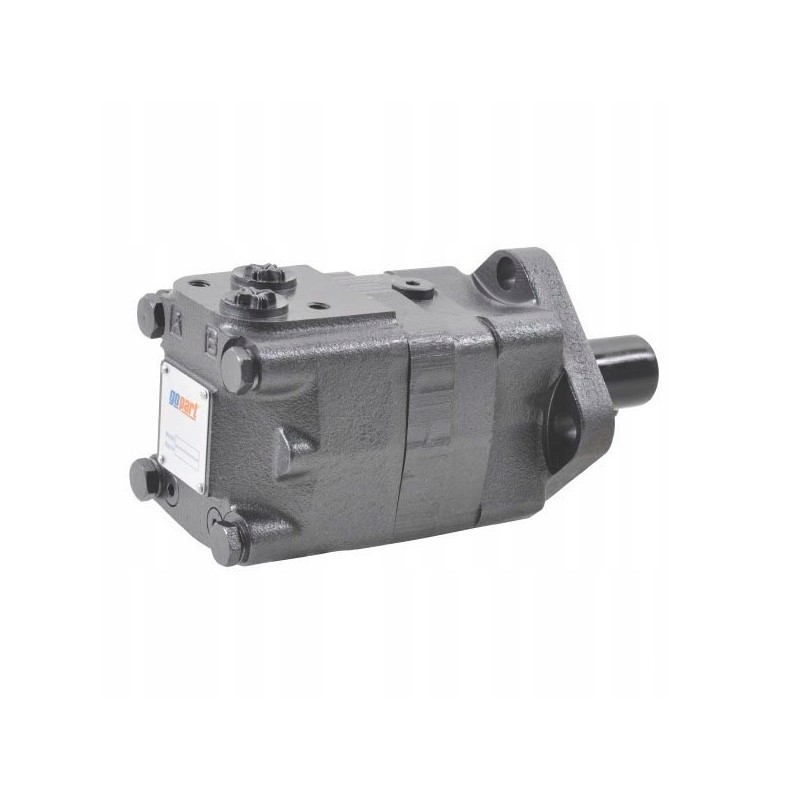

BMS100 SMS100 100cm3 orbital hydraulic motor

Name:

BMS100 SMS100 orbital hydraulic motor 100cm3/rev FI-32mm

Description:

Part number KSMS100E432D00GP1

Specifications Identical design as orbital engines from well-known manufacturers

Benefits - Favorable price-performance ratio - Possibility of long-term use under high pressure - Smooth operation at low rotational speeds - Suitable for frequent changes in the direction of rotation - Slight drops in performance - Very good starting properties - Very high radial shaft load capacity

Application Wherever high torque at low rotational speeds is required, e.g.: - Agricultural, forestry and construction machinery - Drilling tools - Heavy lifts and hoists - Ship and shipyard equipment

Features - With leakage oil drainage - Roller construction - Tapered roller bearings - Belongs to the series of large orbital motors - Compact, very compact structure

Technical information Orbital motors are characterized by a compact design and high starting torque. Thanks to wide bearings, they can absorb high radial and axial forces. Gopart orbital motors convince with a favorable price-performance ratio. The motors are particularly suitable for standard applications with medium loads.

Unit Piece

Connection 1/2' BSP, leakage oil 1/4' BSP

Flange types 4-hole flange

Shaft type Cylindrical shaft

Shaft Ø (mm) 32

Note The motors are equipped with a leakage oil connection, so they can be easily combined with other engines or used in closed hydraulic systems.P1 = max. constant pressureP2 = intermittent operation max. 10%/minP3 = max. top of the pressure graph

SMS9AFDGP seal

Shaft Ø (mm) 32

Pumping capacity (cm³/rev) 100.8

L1 (mm) 17

L (mm) 171

P1 (bar) 175

P2 (bar) 210

P3 (bar) 225

Nmax (rpm) 748

N min. (Rpm) 10

Torque (da Nm) 24

L2 (mm) 127.2

Q max. (l/min) 75

Power (kW) 18.8

Manufacturer: replacement
