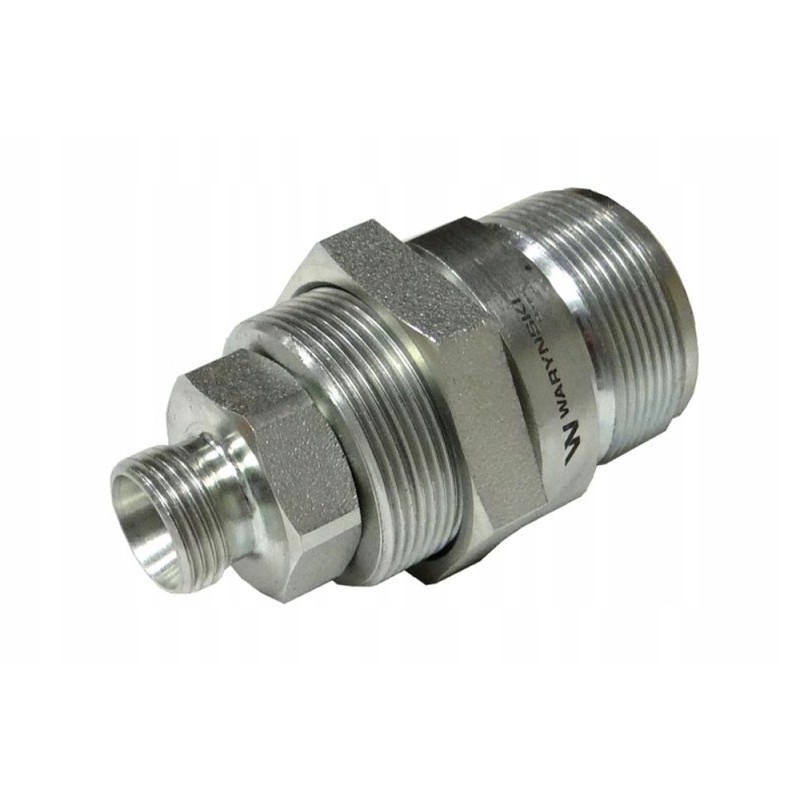

VALVE SEAT (BIZON) M18X1.5 SCREWED (ZSR6160101) WARYŃSKI

VALVE SEAT (BIZON) M18X1.5 SCREWED (ZSR6160101) WARYŃSKI

VALVE SEAT (BIZON) M18X1.5 SCREWED (ZSR6160101) WARYŃSKI

Waryński screwed agricultural quick connector - socket with thread external M18x1.5. The most popular old-type hydraulic valves with a very wide range of applications in agriculture. They are designed in accordance with dimensional and quality requirements, which specify in detail the operating characteristics and dimensions. Thanks to their strong construction, they are suitable for use in difficult operating conditions of agricultural machinery.

*Parameters:

*Thread: External M18x1.5

*Type: Socket - Screwed agricultural

*Cone - thread: 12L (12mm)

*Max. working pressure : 25.0 Mpa / 250 bar

*Operating temperature: from -25°C to +120°C

*Fits plugs: WRSM18WT

-️ Application:

Twisted quick connectors (valves) used in agricultural machines for Bizon. Due to the design of old-type connectors with a ball socket without seals, it is inevitable that trace amounts of oil will appear at the point of direct contact between the socket and the plug in the disconnected position. This phenomenon will be unnoticeable in the new type ISO 7241-A Waryński ISO 7241-A (EURO) Waryński and ISO 16028 (dry-cut) Waryński connectors. ,WRSM18WT

* Producer: Waryński
