Adk komatsu forging dn12 1 2sn m22 x10 hydrolider

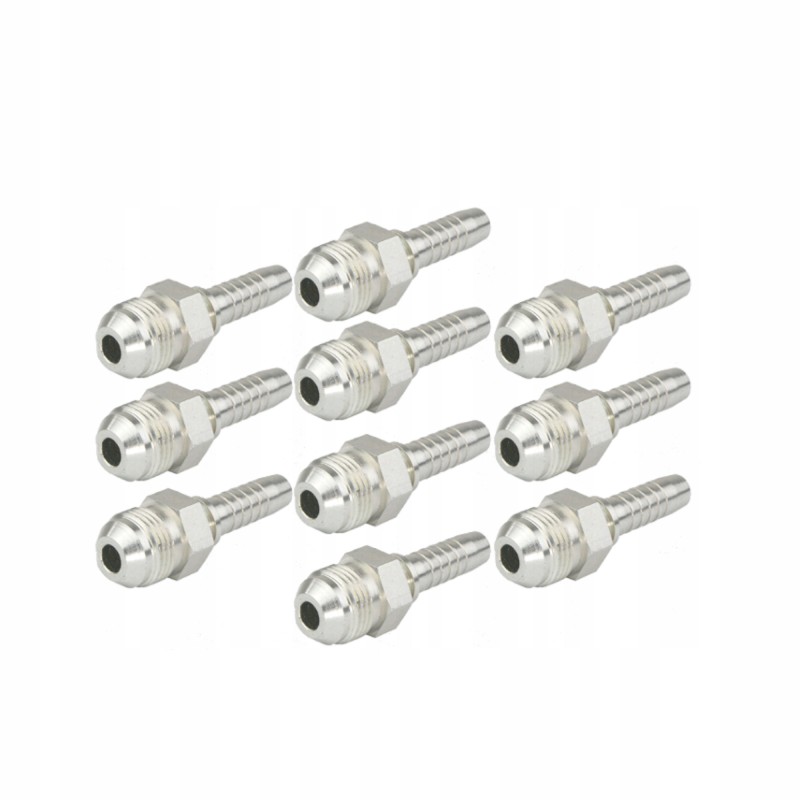

HYDRA CHANGE. STRAIGHT ADK-KOMATSU M22x1.5 FOR HYDRAULIC HOSE 1SN / 2SN DN12 (DN13) SET OF 10 PIECES Production:

Hydrolider, symbol: 4.34.12.022.10

Application:

Fitting used in the production of hydraulic hoses, widely used in agriculture, industry and forestry . Designed to be attached to all hoses from our offer: Agriflex, Semperit, Stomil from the DN12 (13) group with single and double braiding. Fits sleeves from the DN12 (13) group with the marking 1SN and 2SN.

Technical data:

Straight fitting, tip with external metric thread 22x1.5, light version with external (reverse) cone of 60°. Made in accordance with the following standards: PN-65/M 73140, PN-65/M-73141, DIN 3901, DIN 3902. Standard coating of our elements for the production of cables: Electrolytic protective coating ZN alkaline - minimum thickness 8µm

Type A chromate passivation, free from chromium (VI) in accordance with DIN EN 15205. Thanks to the technology used, all our forging elements have excellent protection against difficult weather conditions, ensuring durability and long service life.

Operating temperature range: -40°C to 100°C

Recommended hydraulic hose: DN12 (13) 1SN, DN12 (13) 2SN or other with an internal diameter of 12-13mm

Made in Poland for Agricola Hydraulic Component
