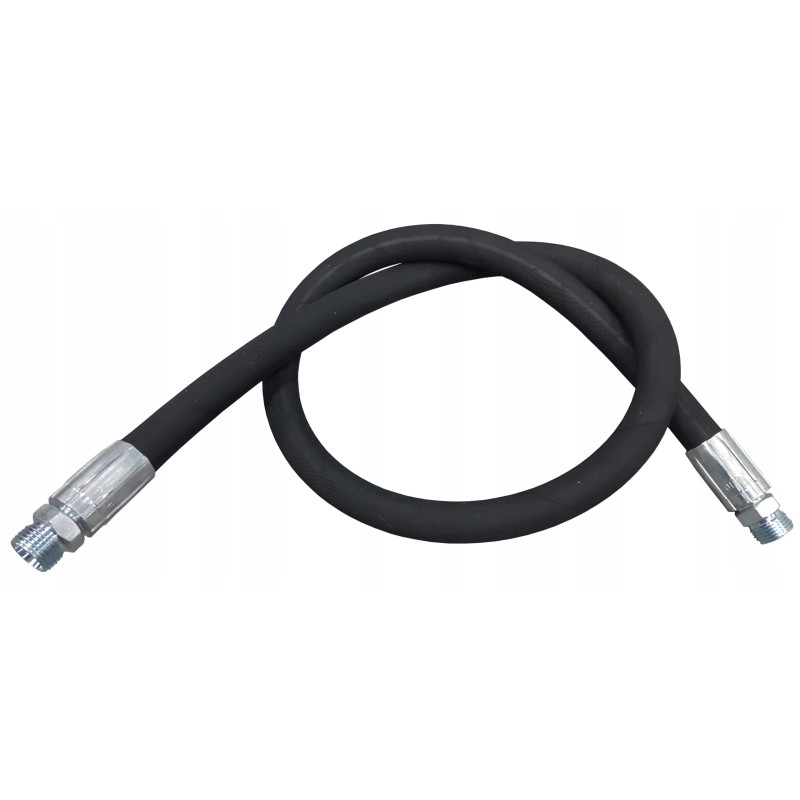

Hydraulic hose line dn10 18 18 bb600 330bar

HYDRAULIC HOSE ZAKUTYP BB 10/2/600/18-18[9028]

Application:

Hydraulic hoses are perfect for hydraulically powered machines and devices. They can be used in agriculture, horticulture, forestry and construction.

Pressure hydraulic lines are self-sealing after tightening. They are used to connect individual components of hydraulic systems, including: actuators, distributors, tanks and engines. Due to its versatility, it can be used in any system with a maximum oil pressure of 330 bar and a flow of up to 50L/min. It is intended for indoor and outdoor use.

Technical data:

The cable is armored, flexible and resistant to weather conditions.

The hose is crimped and ready for installation.

Type of ferrules: BB straight on both sides, nuts with M18x1 external thread. 5

Internal diameter of the passage: (DN10): 10 mm

External diameter of the hose: 18 mm (+/- 0.3 mm)

Number of braids: 2

Length of the cable with clamps: 600 mm

Maximum pressure: 330Bar

Maximum flow: 50L/min

Clamped hydraulic hose consists of:

Hydraulic hose 2SN-3/8` DN10 [1539]

2x sleeve for 3/8` hose 2SN [1536]

2x straight ferrule GZ M18x1.5 for hose 3/8` [1534]

Fittings and connections suitable for the hydraulic hose can be found in our other auctions.
