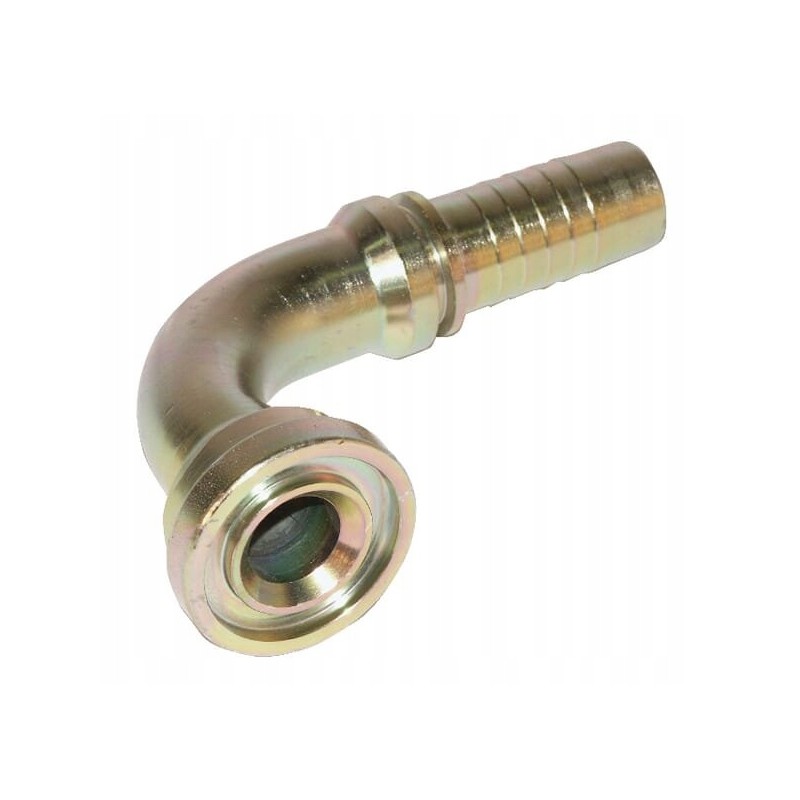

Tip dn20 oe38 1mm 90

Tip DN20-Ø38.1 mm-90° Parameters

Part number: PFL201290

Unit: Piece

Manufacturer: Alfagomma

Shape: Elbow - 2 sides connector

Connector type no. 1: Conical

Connector type no. 1 - male/female: Female

Connector type no. 1 - code: SFL

Connector diameter No. 1: 3/4 inch

Connection Diameter: 38.1 mm

Connector No. 1 Length: 57.7 mm

Connector Type No. 2: Hose Barb

Connector Type No. 2 - Male/Female: Male

Connection Diameter No. 2 : 3/4 inch

Flange outer diameter: 38.1 mm

Flange PSI series: 3000

Angle: 90 °

Material: Steel

OE reference number: H1243390-121200

Connection: xx

Surface treatment

- Galvanized

- White passivated
