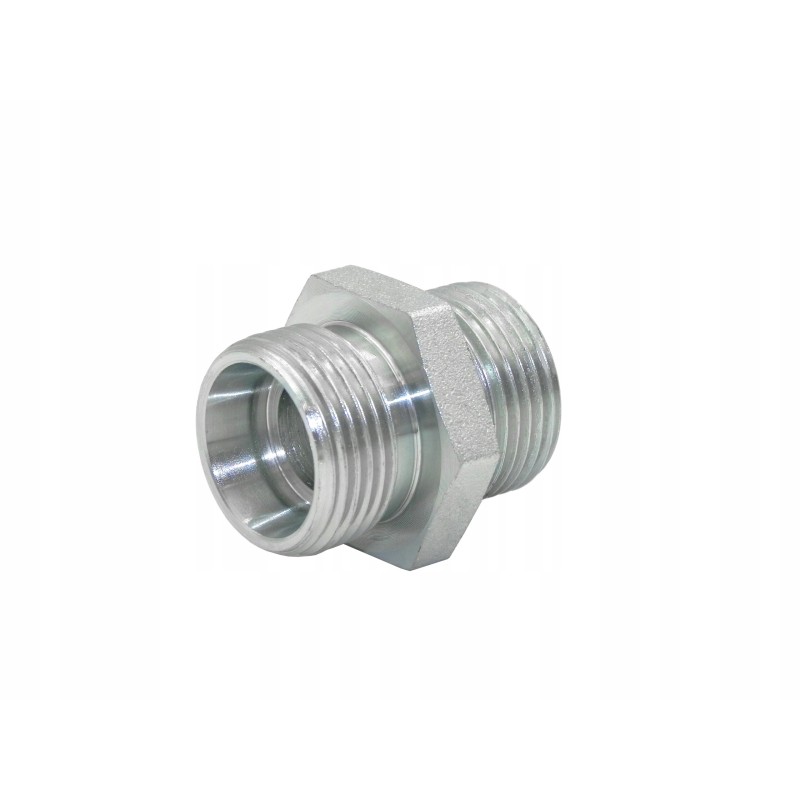

Hydraulic coupling connector 22x1 5 15l 26x1 5 18l
  • Hydraulic coupling connector 22x1 5 15l 26x1 5 18l
  • Hydraulic coupling connector 22x1 5 15l 26x1 5 18l

Hydraulic coupling connector 22x1 5 15l 26x1 5 18l

15010424511592
£12.25
Quantity
5 Items

Description
HYDRAULIC CONNECTOR CONNECTOR M22x1.5 15L - M26x1.5 18LApplication:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Standardized connector, light version with conical clamping self-seal when tightening. Designed to connect two cables or to connect with other connectors with the same conical system.

It does not have a rubber seal or space for a gasket, it is not suitable for screwing into the body of e.g. a pump, actuator or distributor. For this purpose, there are connections that can be purchased at our other auctions.

Technical data:

Thread on one side: external metric 22x1.5 15L - light standard

Thread on the other side: external metric 26x1.5 18L - light standard

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

welded steel, galvanized, corrosion-resistant

We offer most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.

We issue invoices

We invite you to cooperate

Product Details
15010424511592
With M22/26 15L/18L
5 Items
New

Data sheet

Manufacturer
Perfect Hydraulic
Part Number
With M22/26 15L/18L
