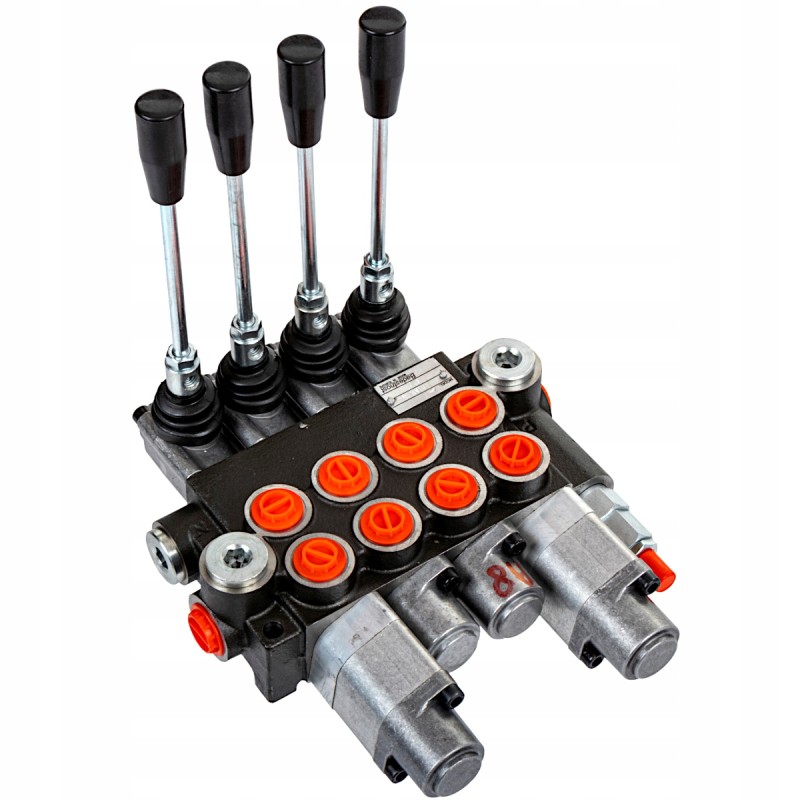

4-section hydraulic distributor 40l 2p 1d 1dw

Hydraulic distributor 4-section 40l 1p 1z 1d 1p MIZAR number: 64758

4-section hydraulic distributor 40L, manually operated, with two floating sections Badestnost Two floating sections, one regular and one with a latch (for hydraulic motors).

It is widely used in hydraulic systems in construction, agriculture and industry

The distributor is adapted to various types of machines such as: agricultural machines, tractors, sprayers, tourers, cyclopes, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and other hydraulically controlled devices.

Other information:

Operating temperature: 15 / +80°C

Capacity: 40L/ min

Internal threads in the body:

Power connection port: 1/2''

Return connection port: 1/2''

Section connection ports: 3/8''

PRESSURE RANGE:

Maximum supply pressure: 250Bar

Maximum return pressure: 50Bar

Maximum pressure on sections: 300Bar

Overflow valve factory set to 175Bar

High quality manifold.

MIZAR number: 64758
