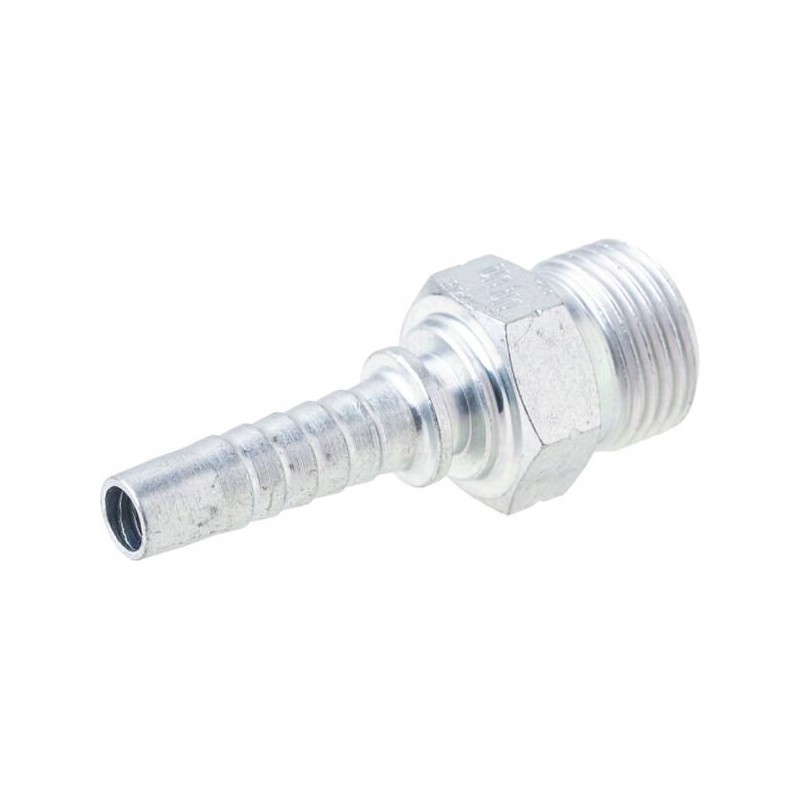

Tip dn08 m18x1 5 10s

End DN08-M18x1.5-10S Parameters

Part number: PS810

Unit: Piece

Manufacturer: Alfagomma

EAN: 8716106788453

Cone angle: 24 °

Shape: Straight - 2 sides connector

Connector type no. 1: Cutting ring

Connector type no. 1 - male/female: Male

Connector type no. 1 - code: CES

Connector no. 1 length: 25 mm

Connector no. 1 thread diameter: M18

Connector no. 1 thread pitch: 1.50 mm

Wrench size for connector no. 1: 19.0 mm

Connector type no. 2: Barb for hose

Connector type no. 2 - male/female: Male

Diameter of connection no. 2: 5/16 inch

Material: Steel

Series: 10S

Connection: xx

Type: CES

Surface treatment

- Galvanized

- White passivated
