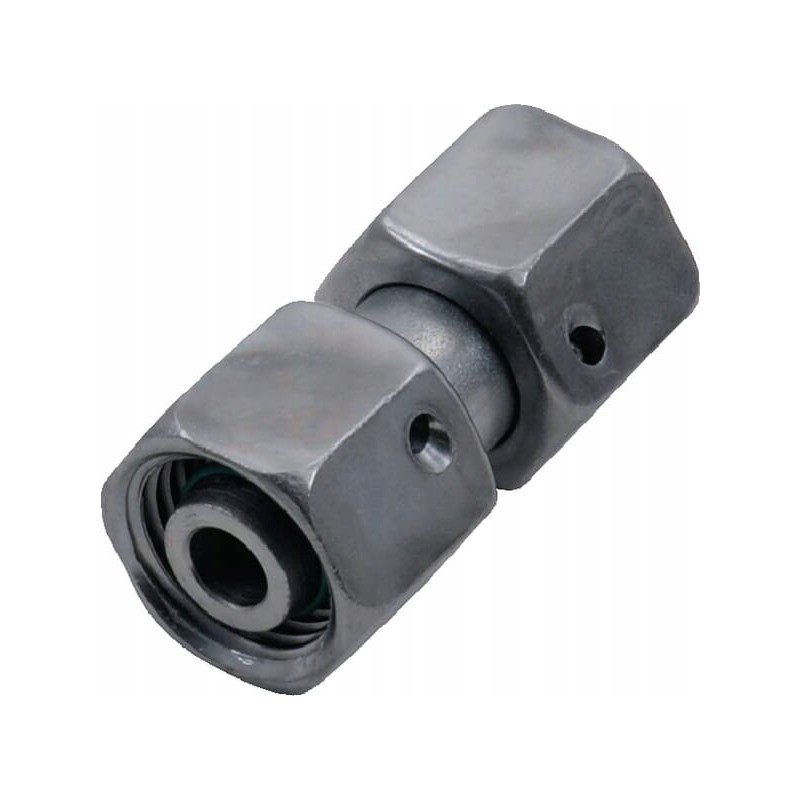

Straight connector with nuts M24x1.5 16S Parameters
Part Number: SNV16S
Unit: Piece
Manufacturer: Voss
Shape: Straight - 2 Sides Connector
Connector Type No. 1 - Male/Female: Female
Connector No. 1 Thread Diameter: M24
Connector No. 1 Thread Pitch: 1.50 mm
Type Connector No. 2 - Male/Female: Female
Connector No. 2 Thread Diameter: M24
Connector No. 2 Thread Pitch: 1.50 mm
Connector No. 2 Thread Type: Metric
Wrench Size for Connector No. 2: 30.0 mm
Pipe Diameter: 16 mm
DIN standard: 2401
Internal diameter: 11.77 mm
Length: 49 mm
Surface treatment: Zinc, Nickel-plated
Max working pressure: 630 BAR
Seal material: Nitrile rubber [NBR]
Series: 16S
Product details
- High corrosion resistance of the standard galvanized layer - Similar design to GVO, but dedicated to higher pressures - Hydraulic hoses
- Hydraulic pipes - Available with Viton seal on request Contains
- Corps
- Connecting nut
- Conical seal with O-ring seal
