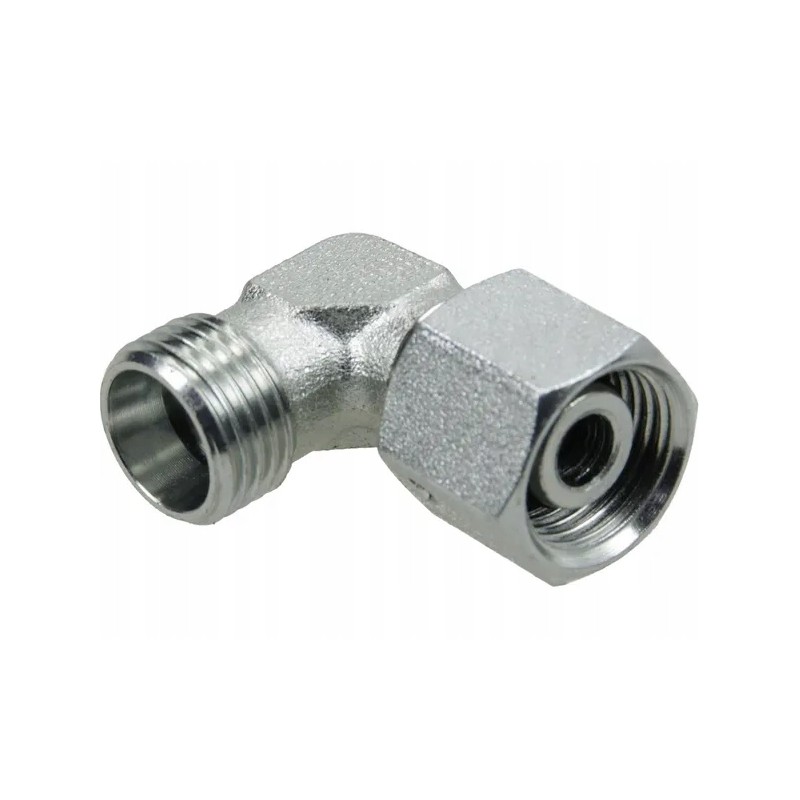

Ewsd10lgp elbow connector with nut m16x1 5 10l

EWSD10LGP M16x1.5 10L Nut Elbow Connector Advantages

Limited risk of leakage

Product Details

Pre-assembled with O-ring

For direct connection to metric hose nut or pre-assembled connector

Galvanized, chrome-free CR6

Shape

Elbow - 2 sides of connection

Connector Type No. 1

Swivel Nut

Connector No. 1 Type - Male/Female

Female

Connector No. 1 Wrench Size< p>

14.0 mm

Connector type no. 2

Thread

Connector type no. 2 - male/female

Male

Thread diameter of connection no. 2

M16

Thread pitch of connection no. 2

1.50 mm

Thread type connector no. 2

Metric

Wrench size for connector no. 2

19.0 mm

Dimension from the centerline of connector no. 2 to the end of the next connector

22 mm

Pipe diameter

10 mm

Angle

90 °

Series

10L
