Dkol 90 clamping dn19 1 2sn m33x2 hydrolider

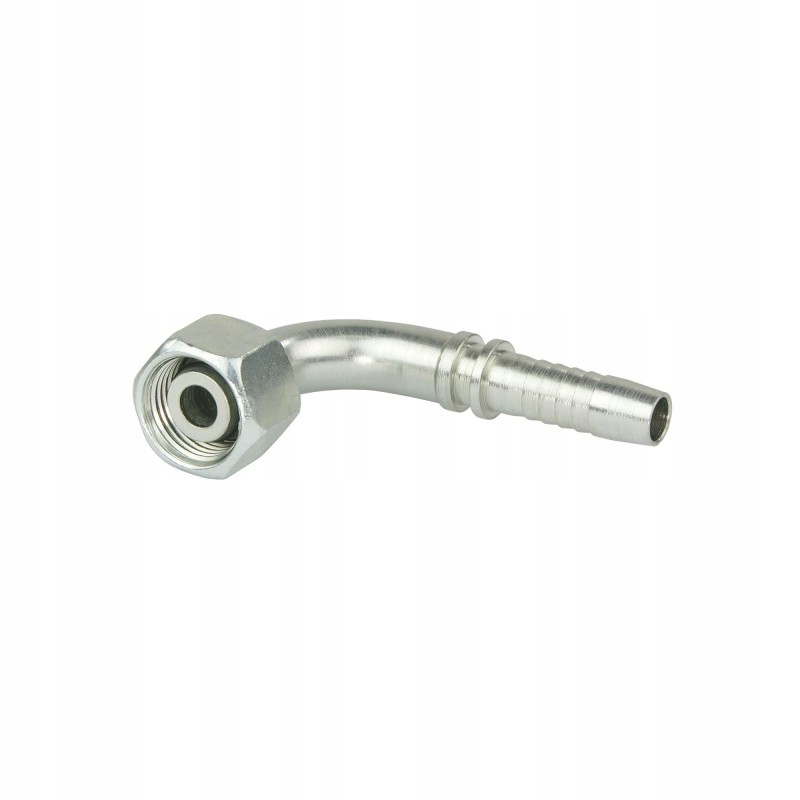

ANGLE HYDRAULIC CLAMPINGDKOL-90 33x2 FOR HYDRAULIC HOSE 1SN / 2SN DN19 (20)Production:

Hydrolider, symbol: 4.06.19.033

Application:

Cuffing used for production of hydraulic hoses, is widely used in agriculture, industry and forestry. Designed to be attached to all hoses from our offer:

Agriflex, Semperit, Stomil from the DN19 (20) group with single and double braiding. Fits sleeves from the DN19 (20) group marked 1SN and 2SN.

Technical data:

90° angle fitting, 33x2 metric thread tip, light version with a 24° cone and an additional sealing ring. Made in accordance with the standards: PN-65/M 73140, PN-65/M-73141, DIN 3901, DIN 3902.

Standard coating of our elements for the production of cables:

Electrolytic protective coating Alkaline ZN - minimum thickness 8µm Type A chromate passivation, chromium (VI) free in accordance with DIN EN 15205. Thanks to the technology used, all our crimping elements have excellent protection against difficult weather conditions, ensuring durability and long service life.

Operating temperature range: -40°C to 100°C

Recommended hydraulic hose: DN19 (20) 1SN, DN19 (20) 2SN or other with an internal diameter of 19-20mm
