Hydraulic tee unf 1 2 nut on the side

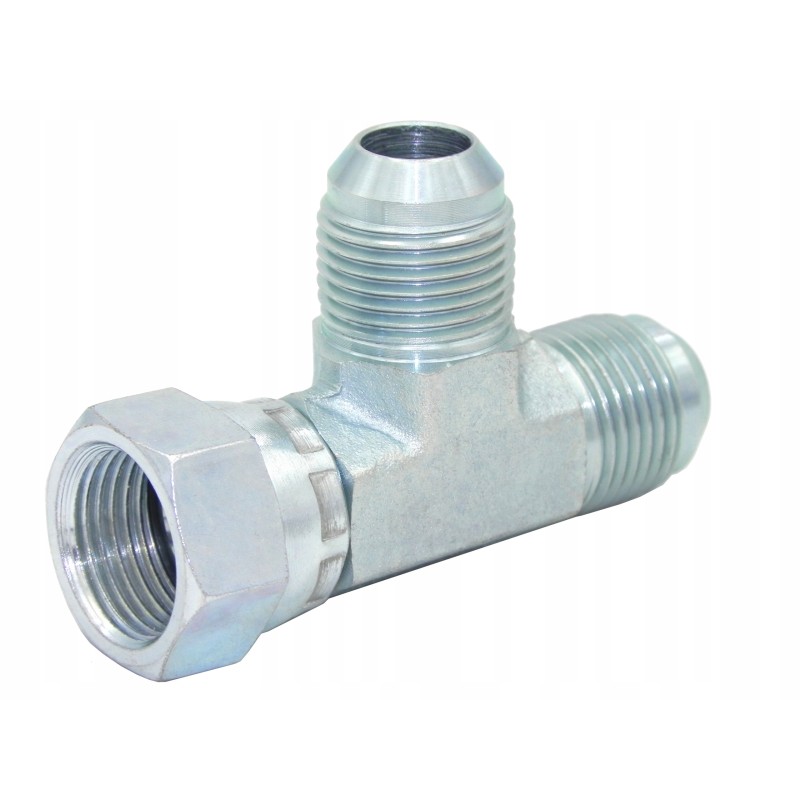

HYDRAULIC TEE CONNECTOR 3x UNF 1/2' WITH NUT ON THE SIDEApplication:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

T-connector, Standardized light version with conical self-seal when tightening. Designed to connect three hydraulic lines or to connect with other connectors with the same conical system.

It does not have rubber seals or places for a seal, it is not suitable for screwing into the body of e.g. a pump, actuator or distributor. Connections that can be purchased at our other auctions are used for this purpose.

Technical data:

Thread on the foot and on one side: external inch UNF 1/2''

Thread on the other side: internal inch UNF 1/2''

Nominal pressure: 180bar

Maximum pressure: 230bar

Fluid type: hydraulic oil< p>

Material:

welded steel, galvanized, corrosion-resistant

We offer most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
