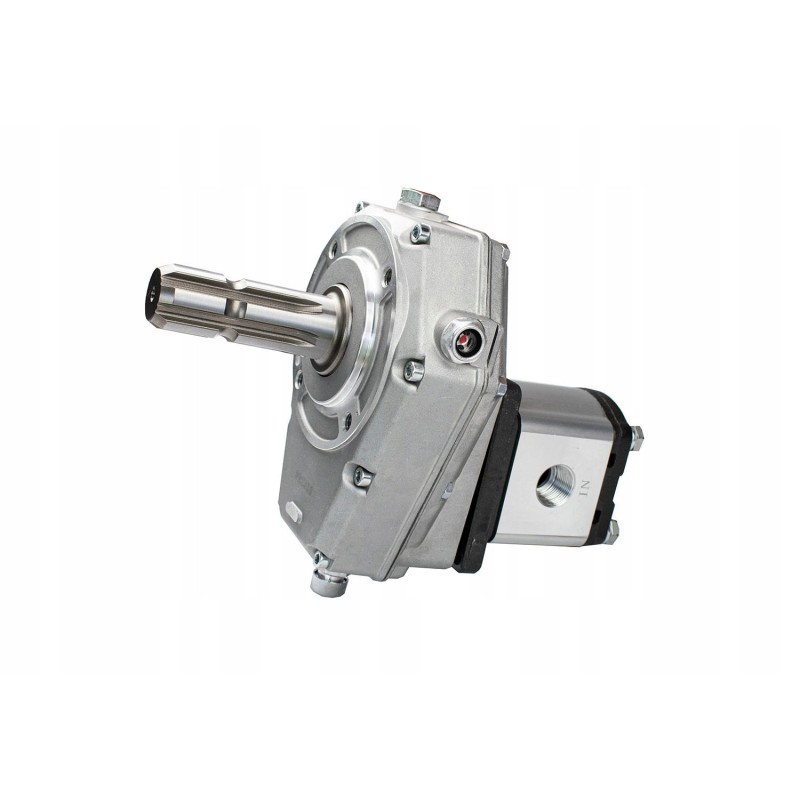

Gear pump 8cm3 16l men's multiplier set

Gear pump of the second group with a male multiplier 1: 3.8 - SET The set includes: PRESKO gear pump with a capacity of 8 cm3/rev

PRESKO multiplier 1: 3.8

Connecting clutch

Connecting screws

Functionality: The set of a gear pump with a multiplier is widely used in numerous agricultural, construction, forestry and orchard machines. It is usually used where the factory pump of the machine with a hydraulic system does not generate enough power or when we need to connect an additional hydraulic system to the machine in order to increase its functionality. Thanks to a solid multiplier, we are able to increase the revolutions on the power take-off shaft, which guarantees stable and efficient operation of the connected system.

PRESKO multiplierA gear that increases the PTO revolutions, gear ratio 1:3.8, input shaft 1 3/8". It is used to increase the rotational speed of the shaft driving the pump of the external hydraulic system.

The structure and parameters of the gear increasing the speed level make it an element suitable for installation in small and medium-sized agricultural, forestry and construction machines equipped with a PTO shaft. The undoubted advantage of the device is the small size of the gearbox, so it can be installed also in hard-to-reach places in machine and tractor housings. The gear increases the speed in relation to 1:3.8.

Radio ratio: 1:3.8

Input shaft: 1 3/8' DIN9611

Pump hydraulic group 2 by PRESKO. A solid gear pump characterized by high-quality materials from which it is made.

Technical specifications: Capacity: 8cm3/rev

Direction of rotation: right

Rotation range: 600-4000

Threaded connections: suction: 1/2'' BSP, discharge 1/2'' BSP

Propeller shaft journal: 1:8 cone, M12 x 1.25

Operating pressure: 200

Maximum operating pressure: 280

Efficiency of the set in liters per minute - based on the PTO shaft revolutions

220 revolutions per minute on the PTO shaft = 6.6l/min.

320 revolutions per minute on the PTO shaft = 9.7l/min.

430 revolutions per minute on the PTO shaft = 13l/min.

540 revolutions per minute on the PTO shaft = 16.4l/min.
