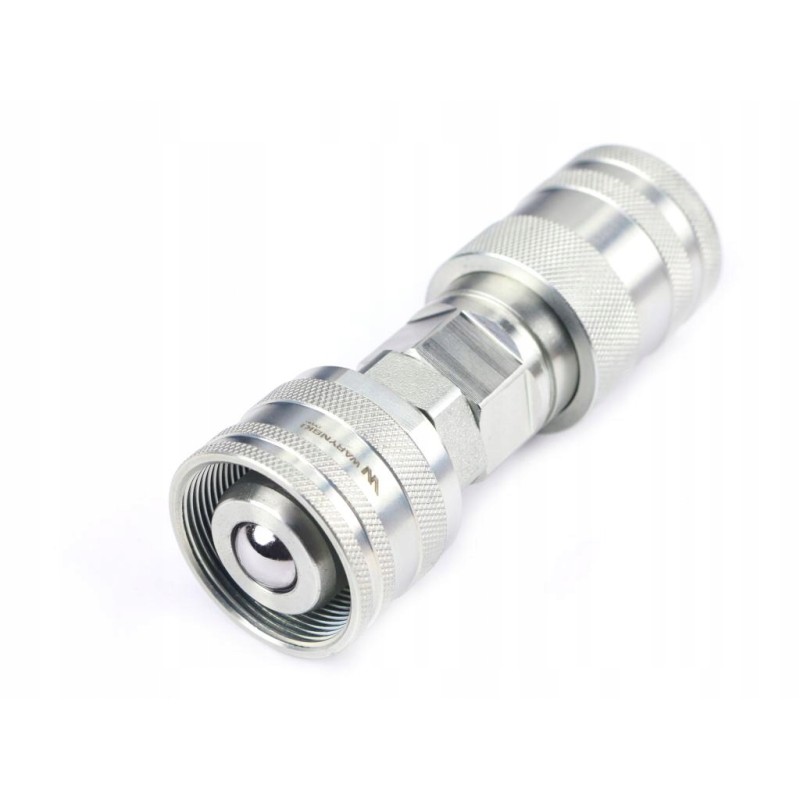

Reduction plug euro push pull socket with eliminat

EURO PUSH-PULL plug/socket reduction with screwed pressure eliminator 50493 Waryński REDUCTIONEURO PUSH-PULL plug/socket reduction with screwed pressure eliminator 50493 Waryński REDUCTION EURO PUSH-PULL plug/socket reduction with screwed pressure eliminator (50493REDUCC) JA) Waryński - a twisted plug installed on one side old type agricultural and on the other side a socket with a EURO pressure eliminator (ISO-7241-A) in the Push-Pull version. The pressure eliminator allows you to connect the hydraulics without the need to use excessive force, which ensures a quick and easy connection process in any situation (static pressure between two hydraulic systems is expanded). The most popular hydraulic reducing valves with a very wide range of applications in agriculture. They are designed in accordance with dimensional and quality requirements, which specify in detail the operating characteristics and dimensions. Thanks to their strong construction, they are suitable for use in difficult operating conditions of agricultural machinery. Thanks to the reducing valves, you can easily change the connection to a higher standard of EURO (ISO-7241-A) Waryński hydraulic quick connectors in the standard and Push-Pull versions.

*Parameters:

*Plug type: Agricultural twisted

*Socket type: EURO (ISO-7241-A) with pressure eliminator

*Max. working pressure: 25.0 Mpa / 250 bar

*Operating temperature: from -25°C to +120°C

*Plug type: Agricultural twisted

*Fits sockets: WRSM22GN, WRSM18GN, WRSM20GN, WRSM22WEWGN, 50490020K, 50490020, ZSR6160101, ZSR6M20GNK

-️ Application:

Waryński twisted EURO plug/socket/plug reduction used in agricultural machinery. Due to the design of old-type connectors with a ball socket without seals, it is inevitable that trace amounts of oil will appear at the point of direct contact between the socket and the plug in the disconnected position. This phenomenon will be unnoticeable in the new type ISO 7241-A Waryński ISO 7241-A (EURO) Waryński and ISO 16028 (dry-cut) Waryński connectors. The pressure eliminator allows the hydraulics to be connected without the need to apply excessive force, ensuring a quick and easy connection process in any situation (static pressure between the two hydraulic systems is released).

* Producer: Waryński
