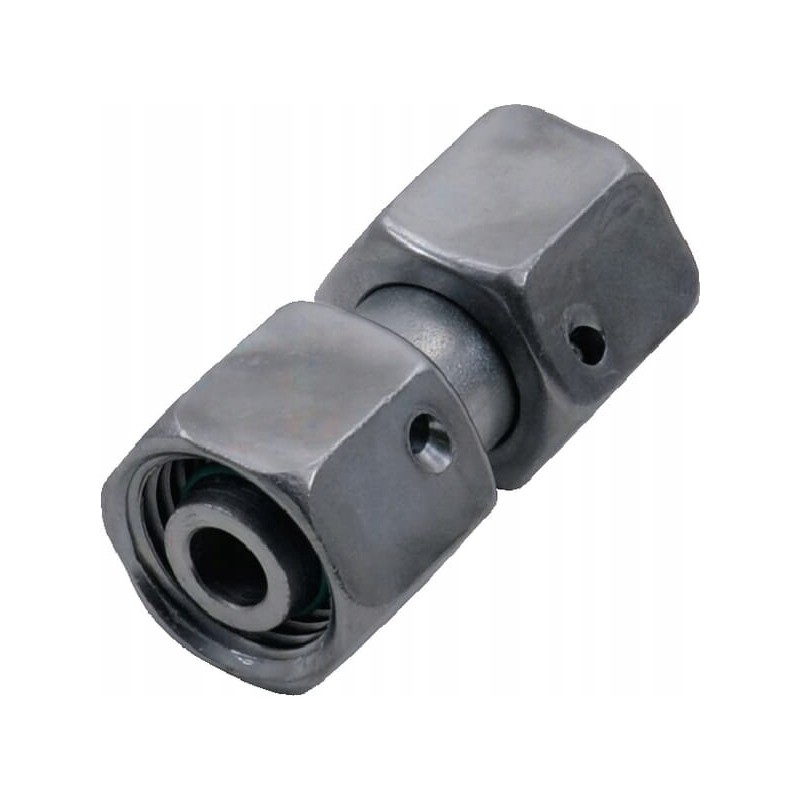

Straight connector with nuts M36x2 0 28l

Straight connector with nuts M36x2.0 28L Parameters

Part Number: SNV28L

Unit: Piece

Manufacturer: Voss

Shape: Straight - 2 Sides Connector

Connector Type No. 1 - Male/Female: Female

Connector No. 1 Thread Diameter: M36

Connector No. 1 Thread Pitch: 1.50 mm

Type Connector No. 2 - Male/Female: Female

Connector No. 2 Thread Diameter: M36

Connector No. 2 Thread Pitch: 1.50 mm

Connector No. 2 Thread Type: Metric

Wrench Size for Connector No. 2: 41.0 mm

Pipe Diameter: 28 mm

DIN standard: 2401

Internal diameter: 22.22 mm

Length: 51.5 mm

Surface treatment: Zinc, Nickel-plated

Max working pressure: 250 BAR

Seal material: Nitrile rubber [NBR]

Series: 28L

Product details

- High corrosion resistance of the standard galvanized layer - Similar design to GVO, but dedicated to higher pressures - Hydraulic hoses

- Hydraulic pipes - Available with Viton seal on request Contains

- Corps

- Connecting nut

- Conical seal with O-ring seal
