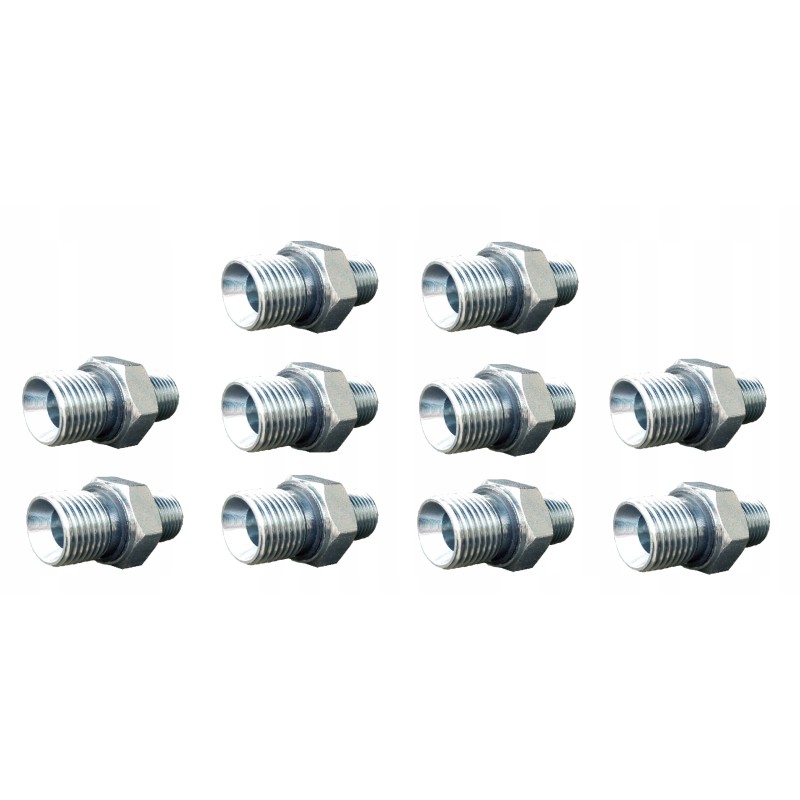

Connections of the 4-section distributor badestnost p40

SET OF CONNECTORS FOR A 4-SECTION DISTRIBUTOR P40L/min BADESTNOSTApplication:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Connectors enable connection of the distributor with hydraulic lines.

Technical data:

1 piece = 1 set

The set includes 10 connections, one for supply and return and 6 for sections. All connections in the set at the thread on the distributor side have a rubber seal. There is no need to add additional seals here.

Threads:

CONNECTION MOUNTED ON THE POWER SUPPLY:

Thread on the distributor side, inch BSP: 1/2'

Thread on the hydraulic conduit side: M22x1.5

-------- -------------------------------------------------- ---------------------------

CONNECTION MOUNTED ON THE RETURN:

Thread on the distributor side, inch BSP: 1/2'

Thread on the cable side hydraulic: M22x1.5

-------------------------------------------- -----------------------------------------

CONNECTIONS MOUNTED ON SECTION:

Thread from inch BSP side of the distributor: 3/8'

Thread on the hydraulic conduit side: M18x1.5

------------------------------ -------------------------------------------------- -----

Material:

body: corrosion-resistant galvanized steel

sealing: rubber

Helpful data:

Thread diameter M18x1.5 measured with a caliper:

Outer diameter [mm]: 17.6 - 17.9

Inner diameter [mm]: 16.2 - 16.6

-------------------------------------- -----------------------------------------------

Thread diameter M22x1.5 measured with a caliper:

Outer diameter [mm]: 21.6 - 21.9

Inner diameter [mm]: 20.2 - 20.6

--------------- -------------------------------------------------- --------------------

BSP 1/2' thread diameter measured with a caliper:

Outer diameter [mm]: 20.5- 20.9

Inner diameter [mm ]: 18.6 - 19

-------------------------------------------------------- -------------------------------------------

Thread diameter 3/8' measured with a caliper:

Outer diameter [mm]: 16.3 - 16.6

Inner diameter [mm]: 14.9 - 15.4

Our offer also includes a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
