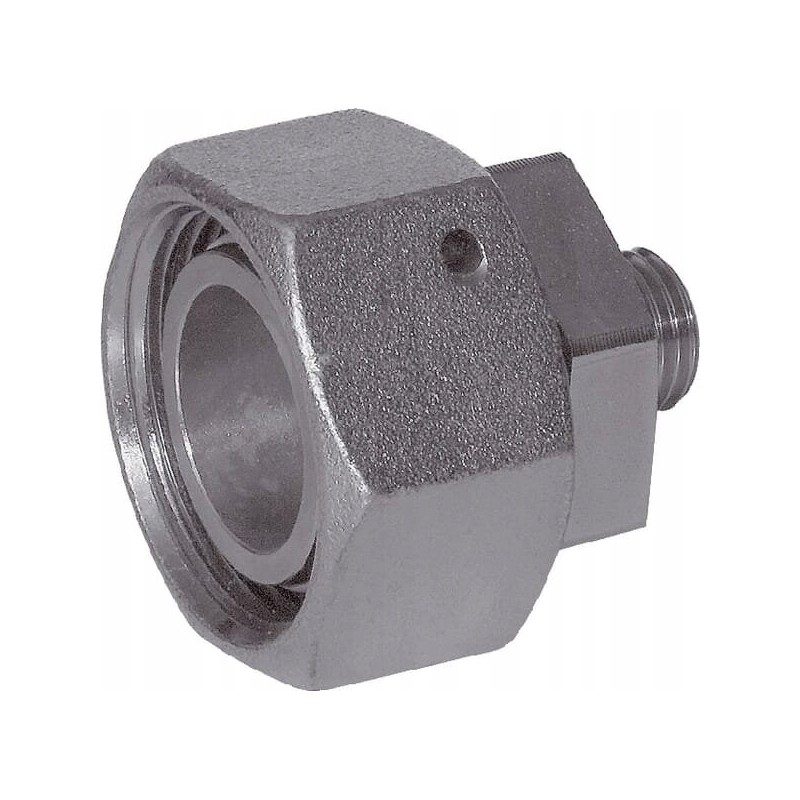

Straight connector with nut m22x1 5 15l m14x1 5 8l

Straight connector with nut M22x1.5 15L - M14x1.5 8L Parameters

Part number: REDSD158L

Unit: piece

Manufacturer: Voss

Properties: - High corrosion resistance

Shape: Straight - 2 sides of the connection

Connector type no. 1 - male/female: Female

Connector thread diameter no. 1: M22

Inner diameter: 6 mm

Max working pressure: 400 BAR

Thread pitch of connector no. 1: 1.5 mm

Series: L

Connector #1 Wrench Size: 19mm

Connector #2 Type - Male/Female: Male

Thread Diameter Connector No. 2: M14

Connector No. 2 Thread Pitch: 1.5 mm

Connector No. 2 Thread Type: Metric

Connector No. 2 Wrench Size: 27 mm

Length: 28 mm

L1: 28 mm

Ø pipe D1 (mm): 15 mm

Ø pipe D2 (mm): 8 mm

O-ring size: 12 x 2 mm

Pressure : PN (nominal pressure) and Temperature acc. to DIN 2401. BAR

S3: 27 mm

Wrench opening [S1]: 19 mm

Wrench opening, other end [S2]: 17 mm< p>

Application

- Hydraulic hose

- Hydraulic lines

Technical information

- Viton gasket available on request< p>

Pipe diameter

- 15 mm

- 8 mm

L2

- 42.5 mm

- 42.5 mm
