Dkol 90 fitting dn12 1 2sn m27x1 5 hydrolider

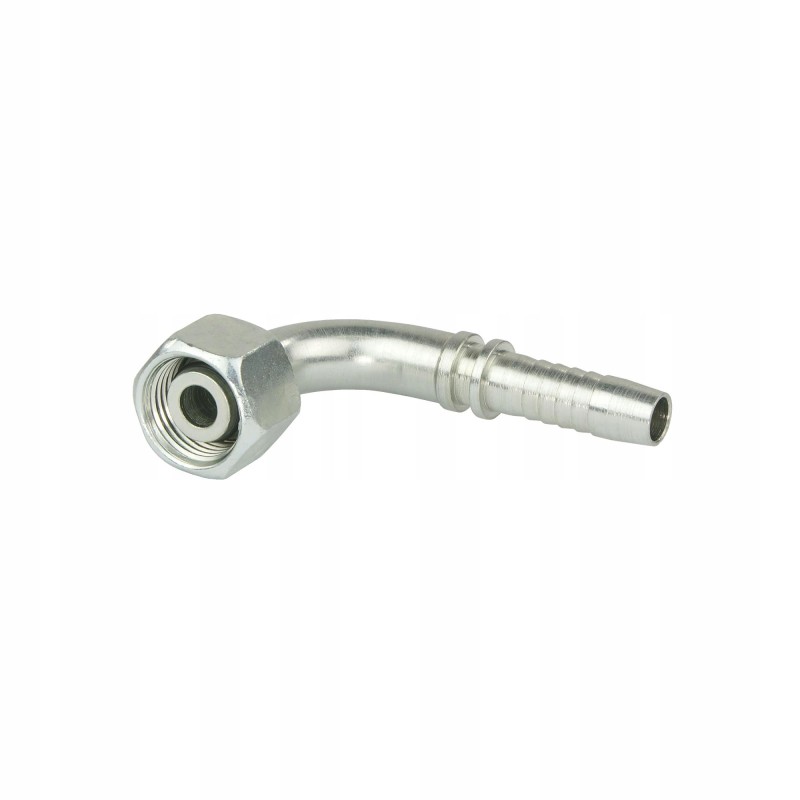

ANGULAR HYDRAULIC CLAMPING DKOL-90 27x1.5 FOR HYDRAULIC HOSE 1SN / 2SN DN12 (13)Production:

Hydrolider, symbol: 4.06.12.027

Application:

Cripping used in the production of hydraulic hoses, has a wide range of applications in agriculture, industry and forestry. Designed to be attached to all hoses from our offer:

Agriflex, Semperit, Stomil from the DN12 (13) group with single and double braiding. Fits sleeves from the DN12 (13) group marked 1SN and 2SN.

Technical data:

90° angle fitting, metric thread tip 27x1.5, light version with 24° cone and an additional sealing ring. Made in accordance with the standards: PN-65/M 73140, PN-65/M-73141, DIN 3901, DIN 3902.

Standard coating of our elements for the production of cables:

Electrolytic protective coating Alkaline ZN - minimum thickness 8µm Type A chromate passivation, chromium (VI) free in accordance with DIN EN 15205. Thanks to the technology used, all our crimping elements have excellent protection against difficult weather conditions, ensuring durability and long service life.

Operating temperature range: -40°C to 100°C

Recommended hydraulic hose: DN12 (13) 1SN, DN12 (13) 2SN or other with an internal diameter of 12-13mm
