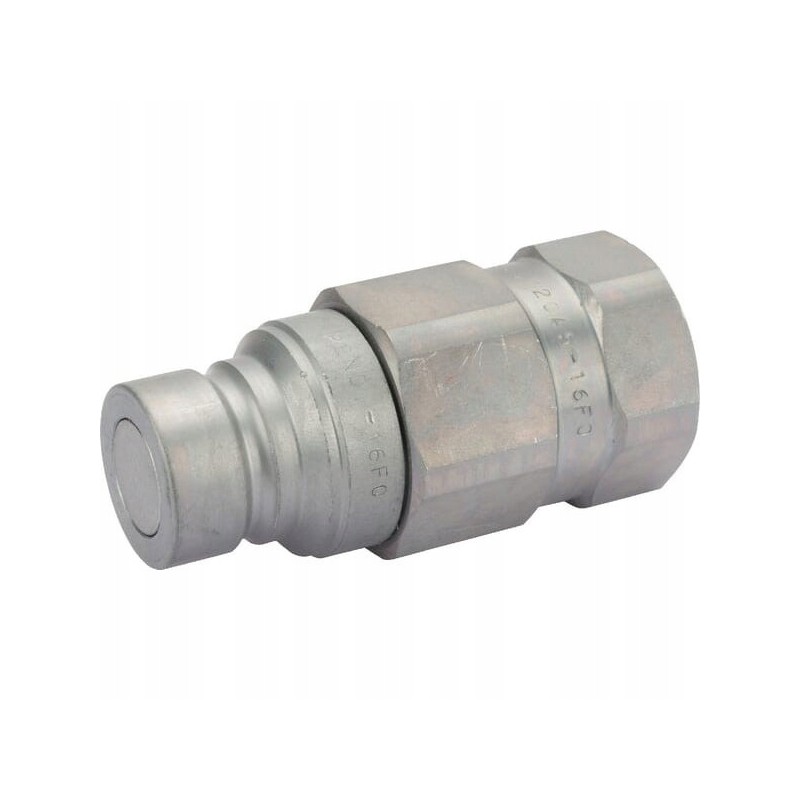

Flat quick connector FFH plug 1/2 internal thread 1/2 BSP INDEX: FFH0812GASM

Material: Carbon steel, Carbon steel

Specifications: - One-hand connection - With special flat valve - Protection against accidental disconnection

Benefits: - Easy operation - Minimal leakage rate - Connection without air inclusions, - Easy operation - Minimal leakage rate - Joining without air inclusions

Properties: - Highest corrosion resistance - With double-sided cut-off - Induction hardening in places exposed to rapid wear - Cannot be joined under pressure, - Highest corrosion resistance - With double-sided cut-off - Induction hardening in places exposed to rapid wear - No can be connected under pressure

Valve type: Flat, Flat

Shape: Straight - 2 sides of the connection, Straight - 2 sides of the connection

Application: - Can be used in ecologically sensitive areas - Hydraulic tools - Construction and agricultural machinery - Ship construction - Liquids based on mineral oil, - Can be used in ecologically sensitive areas - Hydraulic tools - Construction and agricultural machinery - Ship construction - Mineral oil based fluids

Size: 12.5 mm, 1/2 inch

Outer diameter: 37 mm, 1.46 inch

ISO standard: 16028, 16028

Series: FFH, FFH

Connection diameter: 24.5 mm, 24.5 mm

Surface treatment: Zinc

Nickel-plated, Zinc

Nickel-plated

Total length: 78 mm, 2.95 inch

Seal material: Nitrile rubber [NBR], Nitrile rubber [NBR]

Weight: 333.3g, 333.3g

Working pressure: 350BAR, 350BAR

Connector type no. 2 - male/female: Female, Female

Possibility of connecting under pressure: No, No

Working temperature max: 125 °C, 125°C

Minimum operating temperature: -25°C, -25°C

Quick connector lock type: Balls around the circumference, Balls around the circumference

Connection method: Press to connect, Press to connect

Disconnection method: Slide Sleeve, Sleeve Offset

Connection Type No. 2: Thread, Thread

Connection No. 2 Thread Diameter: 1/2 inch, 1/2 inch

Size (code): BG 3, BG 3

Connection No. 2 Thread Type: BSPP, BSPP

Quantity turns per inch of thread of connector No. 2: 14, 14

Flow at 2 bar pressure: 110l/min, 110l/min

Type of connector No. 1: Quick connector, Quick connector

Type of connector No. 1 - male/female: Male, Male

Wrench size connector no. 1: 34mm, 1.34 inch

Diameter of connector no. 1: 0.96 inch, 0.96 inch
