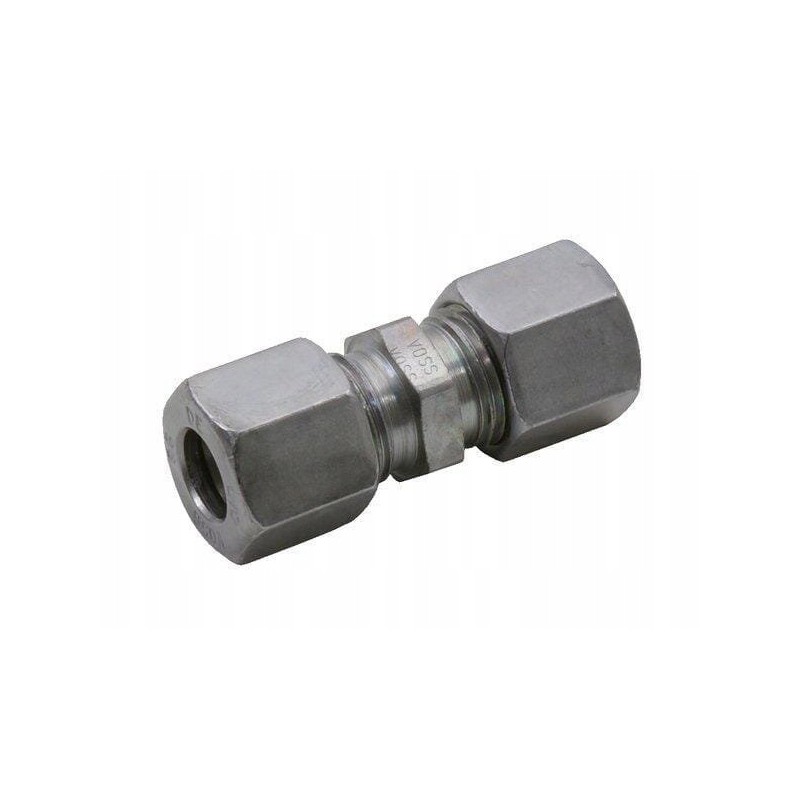

Straight threaded connector 10 s gv10s voss

Straight threaded fitting 10 S Parameters

Part number: GV10S

Unit: piece

Manufacturer: Voss

Shape: Straight - 2 sides connections

Connector type: Cutting ring

Connector type - male/female: Male

Connection diameter: 10 mm

Connector thread diameter : M18

Connector 1 thread pitch: 1.5 mm

Connector thread type: Metric

Wrench size for connector [S1]: 19 mm

Connector No. 2 Type: Cutting Ring

Connector No. 2 Type - Male/Female: Male

Connection No. 2 Diameter: 10 mm

Connector No. 2 Thread Diameter: M18

Connect No. 2 Thread Pitch: 1.5mm

Connect No. 2 Thread Type: Metric

Wrench Size for Connector No. 2 [S2]: 22 mm

Distance between connectors [L1]: 17 mm

Pipe diameter: 10 mm

Total length [L]: 49 mm

Cone angle: 24

Surface treatment: Zinc, Nickel-plated

Max working pressure: 800 BAR

Series: S

Specifications

- 2S cutting ring

Application

- Hydraulic hose

- Hydraulic lines

Properties

- Optimal connection with the cutting ring and perfect operation

- High corrosion resistance

DIN standard

- 2353

- 2401
