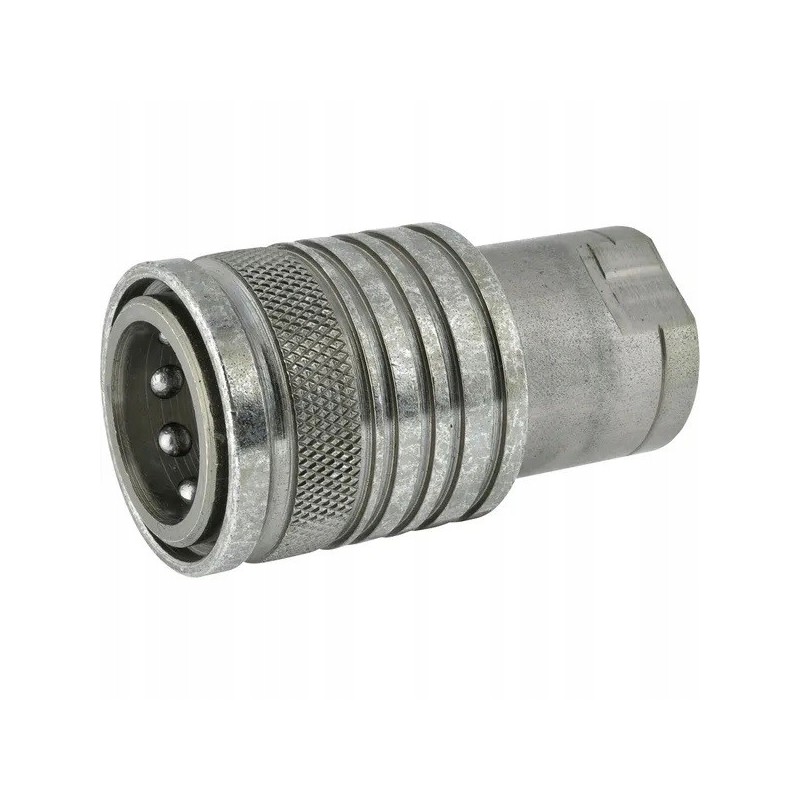

Quick connector ISO 10 female thread 3 8 BSP socket

Application

Universal use

Agricultural machinery

Municipal technology

Mineral oil based fluids Properties

Standard agricultural connector

Push & Pull principle

Tear-off function

With cut-off on both sides Axial actuation of the locking sleeve in both directions (double acting). Shape Straight - 2 sides of the connection Size (code) BG 2 Size 3/8 inch Connector type No. 1 Quick connector Connector type No. 1 - male/female Female Connection diameter 17.3 mm Connector type No. 2 Thread Connector type No. 2 - male/female Female Thread diameter of connection No. 2 3/8 inch Number of turns per inch of thread of connection No. 2 19 Thread type of connection No. 2 BSP Possibility of connection under pressure No Standard ISO 7241-1-A Outer diameter 31 mm Total length 68 mm Material Steel Surface treatment Passivated white Working pressure 250 BAR Working temperature max. 100 °C Operating temperature min. -30 °C Seal material

Nitrile rubber [NBR]

Teflon (PTFE)

Connection type socket
