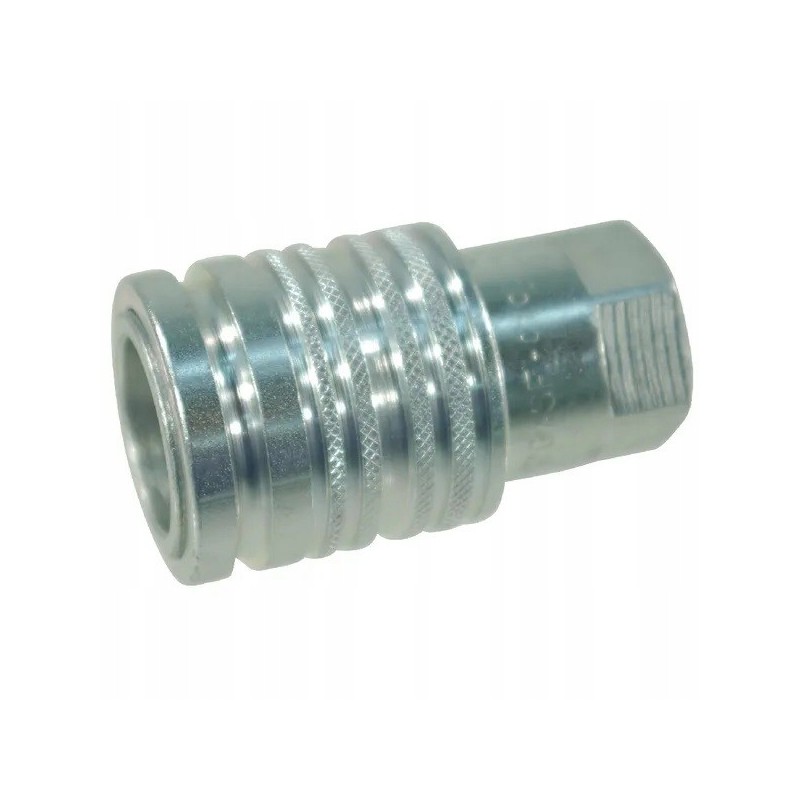

Quick connector ISO 12 5 female thread 1 2 BSP socket

Application

Universal use

Agricultural machinery

Municipal technology

Mineral oil based fluids Properties

Standard agricultural connector

Push & Pull principle

Tear-off function

With cut-off on both sides Axial actuation of the locking sleeve in both directions (double acting). Shape Straight - 2 sides of the connection Size (code) BG 3 Size 1/2 inch Connector type No. 1 Quick connector Connector type No. 1 - male/female Female Connection diameter 20.5 mm Connector type No. 2 Thread Connector type No. 2 - male/female Female Thread diameter of connection No. 2 1/2 inch Number of turns per inch of thread of connection No. 2 14 Thread type of connection No. 2 BSP Possibility of connection under pressure No Standard ISO 7241-1-A Outer diameter 38 mm Total length 70 mm Material Steel Surface treatment Passivated white Working pressure 250 BAR Working temperature max. 100 °C Operating temperature min. -30 °C Seal material

Nitrile rubber [NBR]

Teflon (PTFE)

Connection type socket
