Pglo2030 tip dn20 m30x2 0 22l

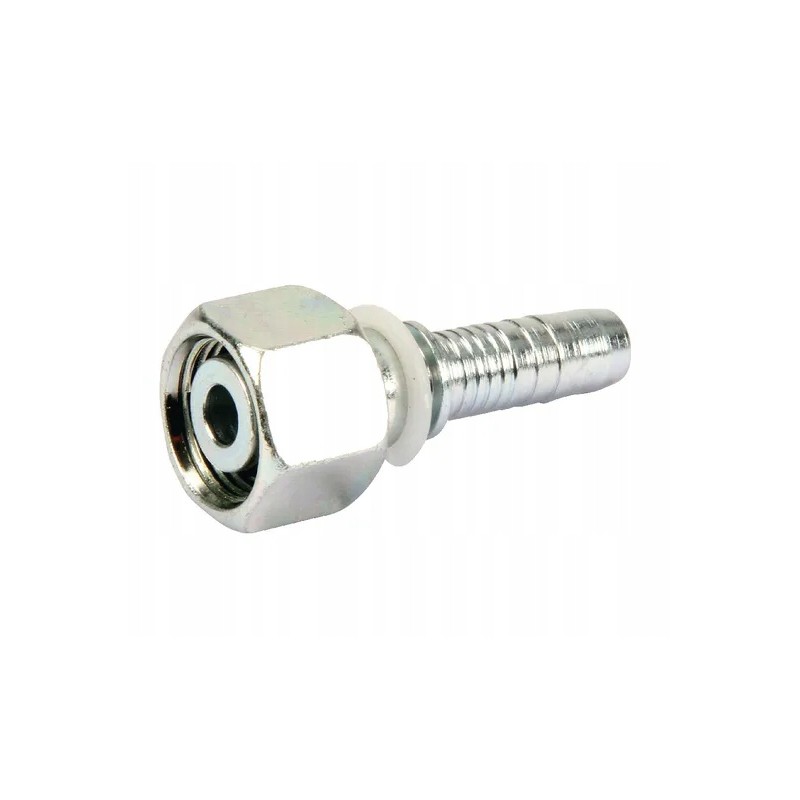

PGLO2030 Tip DN20-M30x2.0-22LEAN

8719493100846

Cone angle

24 °

Shape

Straight - 2 sides of connection

Connector type no. 1

Conical

Connector type no. 1 - male/female

Female

C Length of connector no. 1

31.7 mm

F1 Thread diameter of connector no. 1

M30

F1 Pitch thread of connector no. 1

2.00 mm

CH1 Wrench size for connector no. 1

36.0 mm

Type of connector no. 2

Hose connector

Connector type no. 2 - male/female

Male

Connection no. 2 diameter

3/ 4 inch

Connection diameter no. 2

20 mm

Material

Steel

Surface treatment

Galvanized

White passivated

Series

22L

Connection

Metric union nut with 24° cone and O-ring

Application

Threaded connections with cutting ring, light version with metric union nuts
