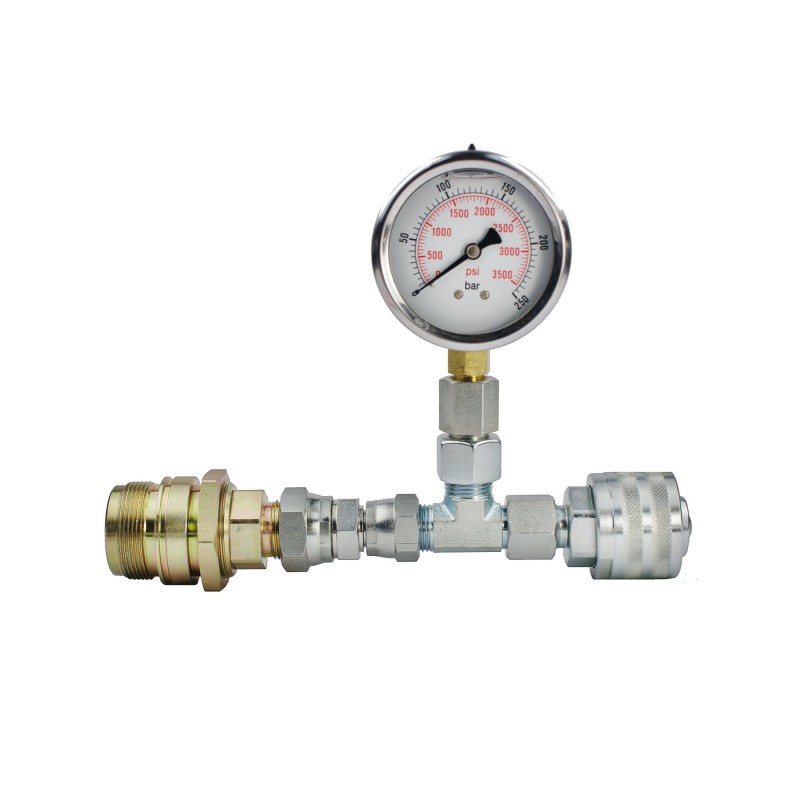

Pressure gauge made of glass 36x1 5 63mm 0 250bar hydrolider

MEASURING SET FOR CHECKING PRESSURE IN THE HYDRAULIC SYSTEM GLYCERINE MANOMETER WITH A SET OF SCREWED QUICK CONNECTORS PRESSURE MEASURING RANGE: 0-250 BAR (MANOM PREVIEW PHOTO. SHIPPED WITH SCALE AS IN DESCRIPTION)

Set components:

Manometer

Manometer cover

Pressure gauge connection

Quick connector, screw-on socket

Quick-screw connector plug

Tee

Connectors

Production:

Original product of the Hydrolider brand, symbol: 1.52.00.615

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Set prepared for connection to any hydraulic line capable of generating pressure. Designed to measure oil pressure in closed hydraulic systems. The pressure gauge is filled with glycerine inside, so the measurement is accurate despite shocks and vibrations. It has a plug to equalize the pressure inside the manometer with atmospheric pressure.

Technical data:

Pressure measurement range: 0-250 Bar

Outer diameter of the clock: 63 mm

Clock connection port thread [BSP]: 1/4'

Operating temperature [°C ]: -10 to +50

Accuracy class: 1.6

Quick connector, screwed socket and plug, ISO standard

Material:

Housing: steel

Viewfinder: glass

(MANOM REVIEW PHOTO. WE SEND WITH THE SCALE AS IN THE DESCRIPTION)
