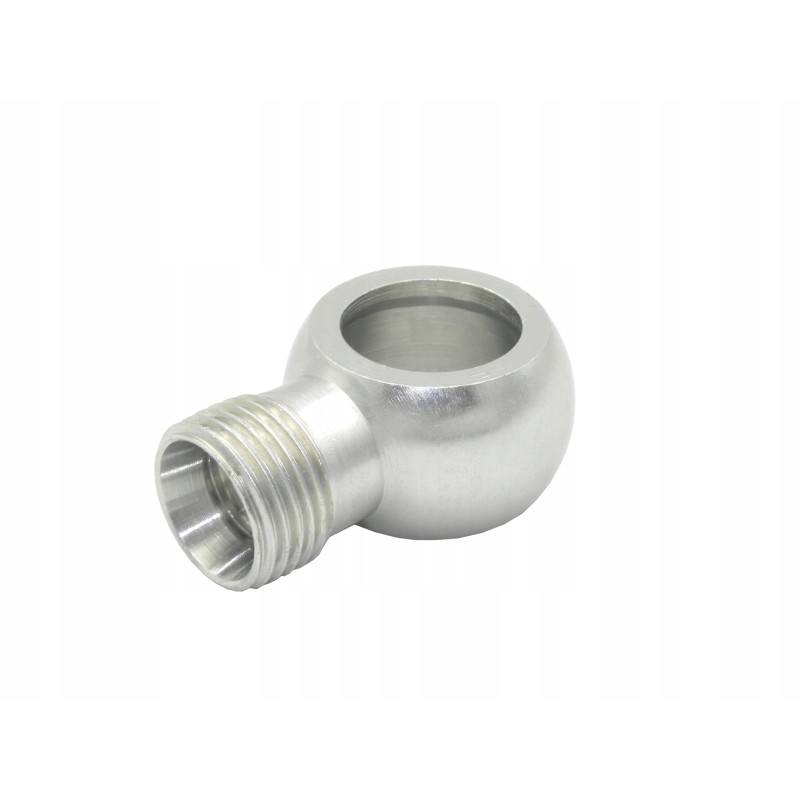

Banjo eyelet hydraulic connector m16x1 5 10l 16mm

BANJO HYDRAULIC RING CONNECTOR M16x1.5 10LApplication:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Eye ends (eyelets) with external thread intended for connection to a hydraulic conduit. This type of connectors can be easily and quickly tightened to a regular hydraulic hose with a nut, thus obtaining an eyelet terminal. Eyelets are used in places where we have limited possibility of using an ordinary elbow or end (where there is very little space). We also have overflow eyebolts intended for eyelets in other auctions.

Technical data:

Clamping cone angle: 24° (typical for the Polish standard)

Cable side thread: external metric 16x1.5 10L

Mesh diameter: 16mm

Version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Fluid type: hydraulic oil

Our offer includes most types of hydraulic motors as well as the entire range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
