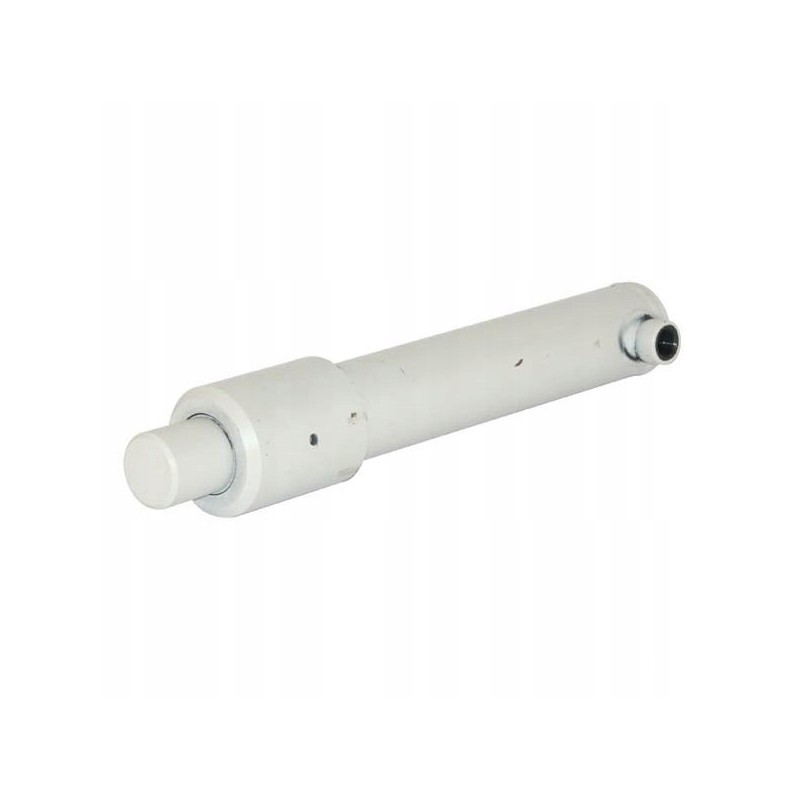

Single-sided hydraulic cylinder actuator 50 500

Name:

Single acting hydraulic cylinder actuator 50/500mm

Description:

Part number KEPL50500C1

Specifications - Fully assembled - Unique innovative design - Special securing ring on the piston

Benefits - For immediate use - Long service life - High level of operational safety

Properties - All types of mounting possible - Primed - Maximum radial load: 10% of force axial - The maximum working pressure depends on the maximum buckling load - The maximum buckling load can be checked in the cylinder software

Unit Piece

Material Cylinder tube St52, H10, piston rod 20MnV6, hard chrome plated Ra 0.25, cast iron head nut, steel welding pipe connector, plastic slip rings

Construction Bolted and welded, head nut and guide made of one piece

Max. working pressure (bar) 250

Rated pressure (bar) 200

B (mm) 656

D (mm) 49.5

E (mm) 65

F (mm) 45

G (mm) 26

H (mm) 80

J (mm) 96

Rod Ø (mm) 50

C (BSP) 3/8'

Stroke A (mm) 500

Manufacturer: replacement
