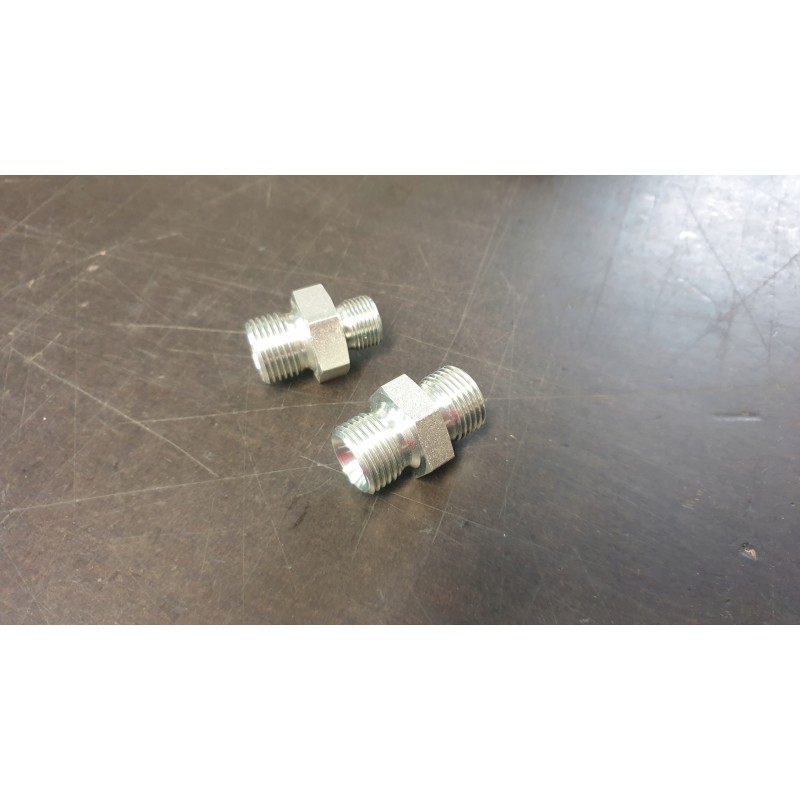

BSP connection nipple g3 8 g3 8

BSP HYDRAULIC CONNECTION STRAIGHT NIPPLE G3/8' to G3/8' Application:

The hydraulic connection is perfect for hydraulically powered machines and devices.

It can be used in agriculture, fruit growing and forestry or construction.

The connection is designed to be screwed into the body of, among others: pump, distributor, etc., using a gasket

It is used to connect the main components in the hydraulic system with hydraulic lines.

The other side is responsible for connecting the hydraulic pipe or elbow. Sealing occurs after tightening the joints on the self-sealing cone. This ensures complete sealing of the system.

The connection is designed to be screwed into the body. It should not be used to connect two hydraulic lines.

Technical data:

Clamping cone angle: 24° (typical for the Polish standard)

Total length H: 34, 5mm

Nominal diameter of the passage: 10mm

G1 thread on the body side: external inch 3/8'

G2 thread on the cable side: external inch 3/8' '

Connection version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

weldable steel, galvanized, corrosion-resistant
