Hydraulic piston cylinder 63 36 stroke 320mm l 789

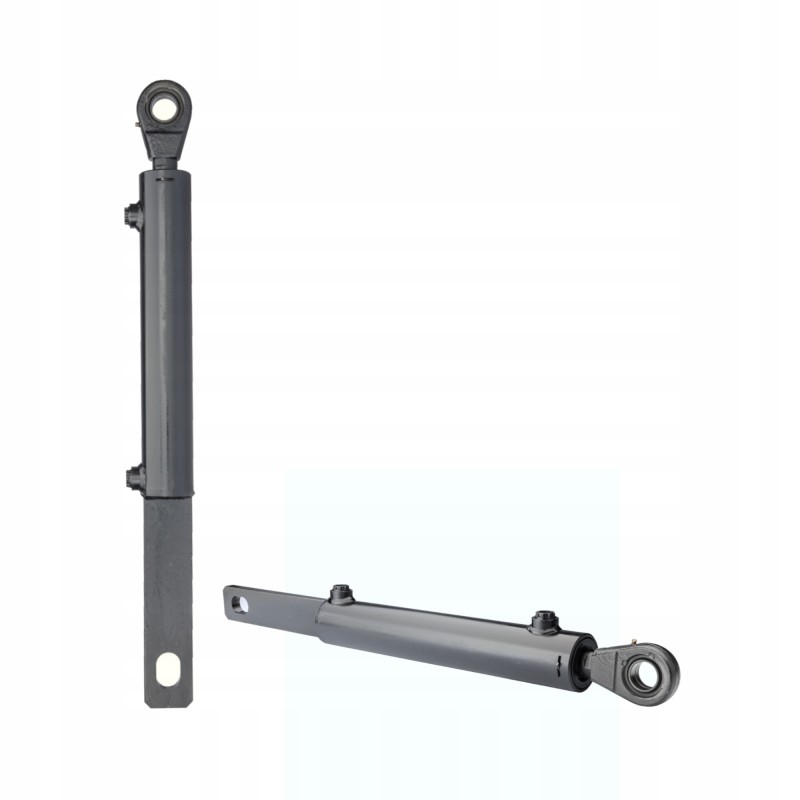

DOUBLE-ACTING HYDRAULIC CYLINDER, COMPLETE WITH EARS ON SWINGING BEARINGSProduction:

Original product of the Hydrolider brand, manufacturer's symbols: 7.01.63.36.320, CJ2F 63/36/320 U35

Application:

It is widely used in hydraulic systems in agriculture, construction and industry.

Our clients use this cylinder in the production of, among others: agricultural machines, grabs, crocodiles, snow plows, power steering and others.

DEAR CUSTOMER, READ THIS BEFORE YOU CHOOSE AN ACTUATOR SUPPLIER: What you can see in the photo are only the metal elements from which the actuator is made. In fact, the actuator is only worth as much as the internal seals used in its construction. We ensure that all our actuators have reinforced seals that are not manufactured in China or other Far Eastern countries. If you care about quality and durability, choose Hydrolider actuators, which are the only ones that guarantee reliability for years.

General information:

Head mounting on the pipe side: welded

Mounting the head from the rod side: screwed on

Type of stuffing box (closing cover): threaded, screwed into the pipe

Type of rod (piston rod): chrome-plated, weldable

Dimensions:

Piston (pipe) outer diameter: 75mm

Piston (pipe) inner diameter: 63mm

Piston rod (rod) diameter: 36mm

Diameter of holes for pins: 35mm

Stroke (working movement) of the piston rod: 320mm

Length at rest measured in the axes of the holes: 789mm

Internal threads for connections: M22x1.5

Operating parameters:

Nominal pressure: 160 bar

Maximum pressure: 240 bar

Pushing force at 160 bar: 49 kN (5 tons)

Pushing force at 240 bar: 74 kN (7, 5 tons)

Pulling force at 160 bar: 33 kN (3.5 tons)

Pulling force at 240 bar: 50 kN (5 tons)

Permissible ambient temperature: -40ºC to +60ºC

Permissible oil temperature: -15ºC to +80ºC

Fluid type: mineral oil-based hydraulic oil

Table showing change in the pushing and pulling force of the offered actuator depending on the change in oil pressure in the hydraulic system (photo):
