Angle connector ab m24x1 5 m24x1 5 hydrolider

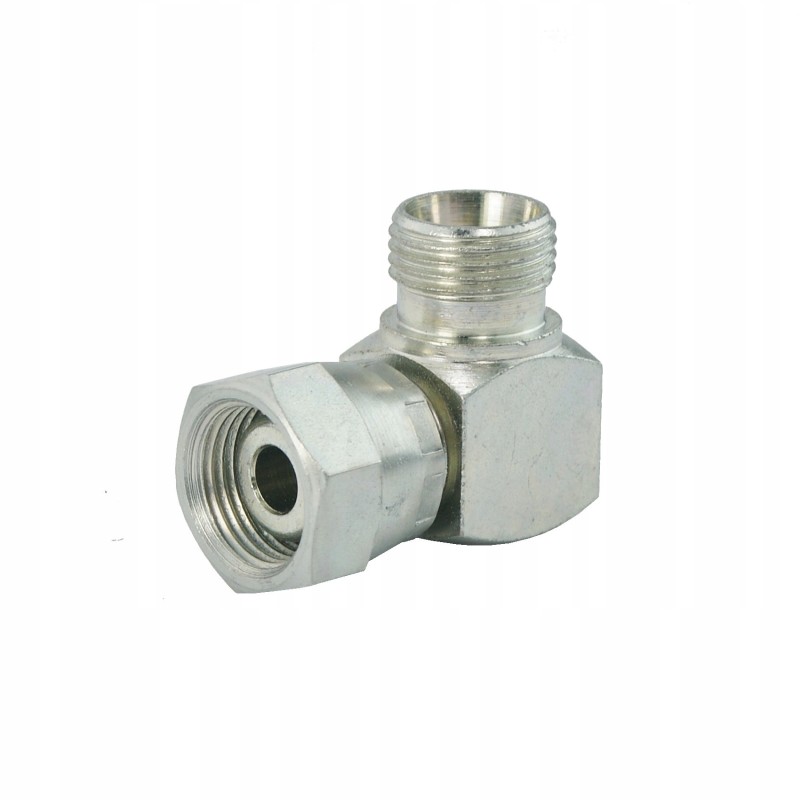

ANGLE HYDRAULIC CONNECTOR AB 24/24 Production:

Hydrolider, symbol: 1.60.04.057

Application:

It is widely used in hydraulic systems in agriculture, horticulture and forestry , construction and broadly understood industry.

Connector, standardized, light version with a conical self-sealing clamp when tightening. Designed to connect two cables or to connect with other connectors with the same conical system.

It does not have a rubber seal or space for a gasket, it is not suitable for screwing into the body of e.g. a pump, actuator or distributor. Connections that can be purchased at our other auctions are used for this purpose.

Helpful data:

M24x1.5 thread diameter measured with a caliper:

Outer diameter [mm]: 23.6 - 23.9

Inner diameter [mm]: 22.2 - 22.6

Technical data:

Clamping cone angle: 24° (typical for the Polish standard)

Nominal diameter of the passage: 12mm

Thread on one side: internal metric 24x1.5

Thread on the other side: external metric 24x1 .5

Version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Fluid type: hydraulic oil

Material:

weldable steel, galvanized, corrosion-resistant
