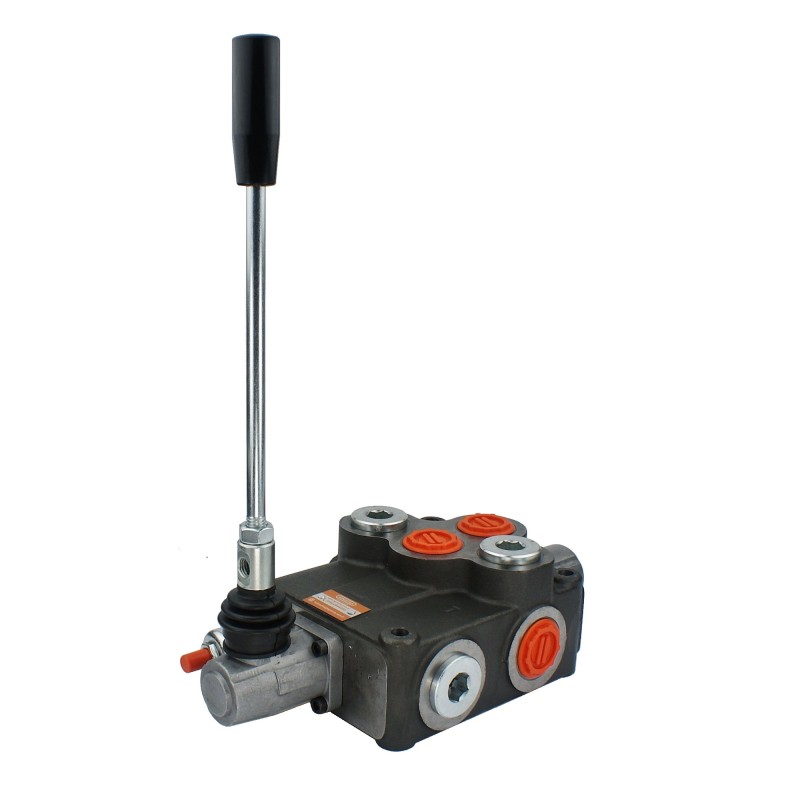

1-SECTION HYDRAULIC DISTRIBUTOR P120 Production:

Original product of the Badestnost Bulgaria brand, manufacturer's symbol: P120 A1 GKZ1, symbol: 1.10.20.010

Application:

It has a wide range of applications in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The distributor is adapted to various types of machines such as: agricultural machines, tractors, sprayers, tourers, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and other hydraulically controlled devices.

Technical data:

Recommended oil flow in the system: 0 - 120 l/min.

Example control: double-acting actuator.

Possibility of serial connection to an existing system (pressure sleeve required).

Control:

Three-position lever (1 - 0 - 2), on a spring, i.e. it returns to the vertical on its own:

Position 0 neutral (lever set vertically), the actuator piston rod is standing - the oil goes to the overflow.

Working position 1 ( lever set in an oblique position forward) the actuator piston rod extends.

Working position 2 (lever set in an oblique position backwards) the actuator piston rod retracts.

On the right, a hydraulic diagram of the distributor :

Connection:

Power supply from the pump (P1, P2): BSP 1'' internal thread

Return to the tank (T1, T2): BSP 1'' internal thread

Sections (A, B): BSP 1'' internal thread

Series connection (N) : internal thread M36x1.5

Pressure range:

Maximum supply pressure: 250Bar

Maximum return pressure: 50Bar

Maximum pressure on sections: 300Bar

The overflow valve is factory set to 180Bar ± 30 Bar.

It is recommended to check and set the appropriate pressure before starting.

Possibility of self-adjustment, full turn change by 30Bar.

Oil types recommended by AGRICOLA:

Thinner high-quality oil: LOTOS AGROL BOXOL 26

Thicker high-quality oil: FUCHS AGROFARM HYDRATEC HVI 46

Recommended oil temperature range:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C
