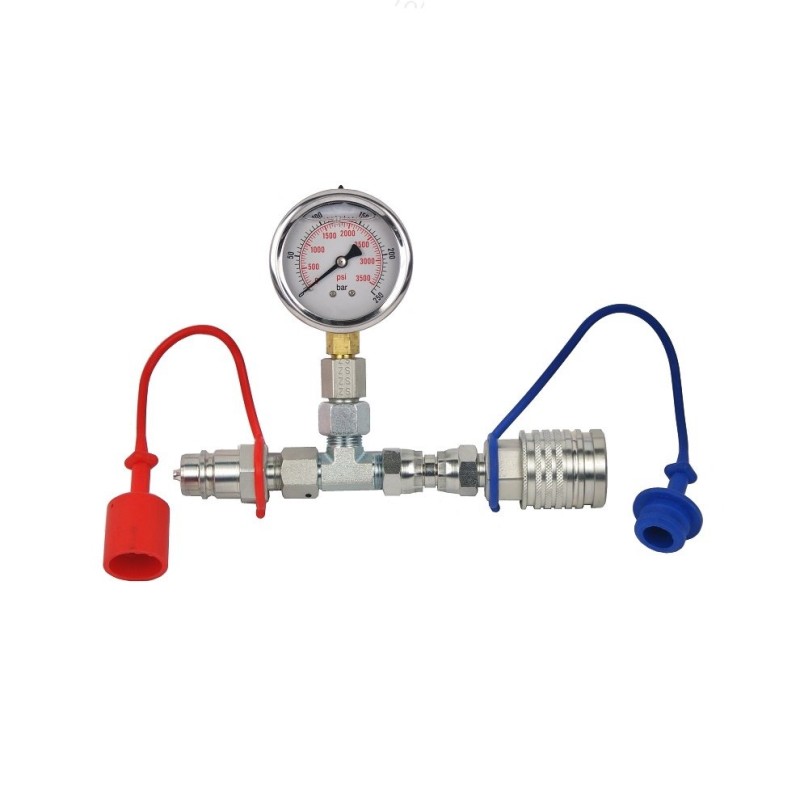

Pressure gauge with a set of euro 63mm 0 250bar hydrolider

MEASURING SET FOR CHECKING PRESSURE IN THE HYDRAULIC SYSTEM GLYCERINE MANOMETER WITH A SET OF EURO QUICK CONNECTORS PRESSURE MEASURING RANGE: 0-250 BAR (MANOM PREVIEW PHOTO. SHIPPED WITH SCALE AS IN DESCRIPTION)

Set components:

Pressure gauge

Pressure gauge cover

Connection pressure gauge

Quick connector euro socket

Quick connector, euro plug

Covers for quick connectors

Tee

Connectors

Production:

Original product of the Hydrolider brand, symbol: 1.52.00.515

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Set prepared for connection to any hydraulic line capable of generating pressure. Designed to measure oil pressure in closed hydraulic systems. The pressure gauge is filled with glycerine inside, so the measurement is accurate despite shocks and vibrations. It has a plug to equalize the pressure inside the manometer with atmospheric pressure.

Technical data:

Pressure measurement range: 0-250 Bar

Outer diameter of the clock: 63 mm

Clock connection port thread [BSP]: 1/4'

Operating temperature [°C ]: -10 to +50

Accuracy class: 1.6

Euro quick connector, socket and plug, ISO standard

Material:

Housing: steel

Viewfinder: glass

(MANOM REVIEW PHOTO. WE SEND WITH THE SCALE AS IN THE DESCRIPTION)
